Linergy, Screw Terminal, Feed Through, 4 Points, 4mm² , Grey

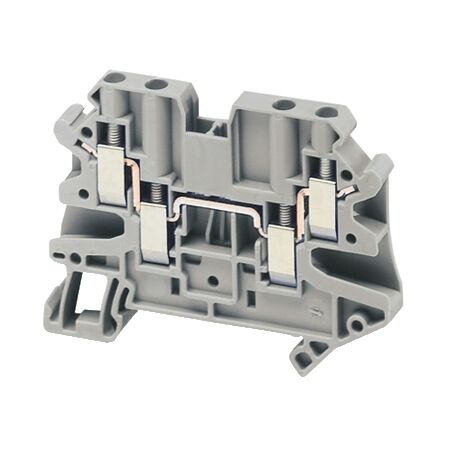

Screw Terminal Block 4 Points | 4mm² | Clip-On Mounting | Grey by Clipsal

BRAND: Clipsal

SKU: NSYTRV44

$2.30 List price: $2.90

+ −

30 Days Return Delivery Options

Screw terminal block with 4 points and 4mm² capacity—ideal for industrial electrical installations. Built for easy connections, with clip-on mounting for quick setup.

Description
Attachments

Product Name/Title: Linergy, Screw Terminal, Feed Through, 4 Points, 4mm² , Grey

Brand: Clipsal

SKU: NSYTRV44

Alternatively Known As: Screw Terminal Block, Feed Through Terminal, Linergy Terminal Block

Technical Specifications

Nominal cross section: 4 mm²
Connections: 2 x screw terminal downstream (M3), 2 x screw terminal upstream (M3)
Wire stripping length: 9 mm
Tightening torque: 0.6...0.8 N.m
Dielectric strength: 1000 V conforming to IEC 60243-1
Flame retardance: V0, thickness 0.8 mm conforming to UL 94
Dimensions (H x L x W): 47.5mm x 65.4mm x 62mm
Weight: 0.1 kg

Key Features

4 screw terminals for easy connections.
Rated operational voltage of 500 V.
Rated current of 32 A.
Clip-on mounting mode for easy installation.

Professional Installation Requirements

Professional installation is recommended for optimal safety and performance.

Applications

Industrial: Suitable for use in various electrical installations and enclosures.

Standards & Compliance

Complies with EN/IEC 60947 for safety and performance standards.

Environmental Benefits

Green Premium product status.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Linergy Screw Terminal Feed Through 4 Points 4mm² Grey is available now for immediate purchase. Ideal for industrial electrical applications.

NSYTRV44 (NSYTRV44, 273 Kb) [Download]
