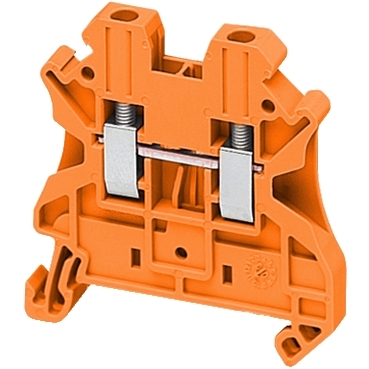

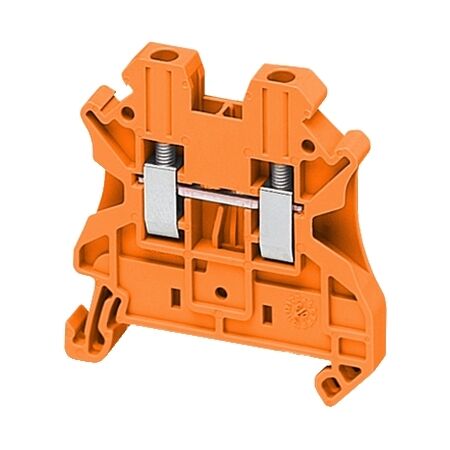

Screw Terminal Feed Through | DIN Rail Compatible | 800V Rated | 32A Current | @Each of 1 | by Clipsal
The Screw Terminal Feed Through is designed for secure wiring with a reliable screw connection, perfect for electrical distribution boards and industrial control panels. With a durable flame-retardant plastic housing and a feed-through design, it allows for easy circuit extension and is suitable for a wide range of electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Screw Terminal Feed Through | DIN Rail Compatible | 800V Rated | 32A Current | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHNSYTRV22AR
Alternatively Known As: Terminal block, Feed through terminal, Electrical terminal connector, Screw connection terminal, DIN rail terminal
Technical Specifications
- Type: Screw terminal feed through
- Mounting: DIN rail compatible
- Material: Flame-retardant plastic housing
- Connection: Screw clamp
- Rated voltage: 800V
- Rated current: 32A
- Wire size: Up to 4mm²
- Dimensions (H x L x W): 40mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Reliable screw terminal connection for secure wiring
- Feed through design for easy circuit extension
- Durable construction for long-term use
- Suitable for a wide range of electrical applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with Australian standards.
Applications
- Electrical distribution boards
- Industrial control panels
- Commercial and residential wiring systems
- Switchboards and enclosures
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reusable and durable design reduces replacement frequency and waste
- Supports safe and efficient electrical installations, minimizing energy loss
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHNSYTRV22AR Screw Terminal Feed Through is available for immediate purchase. Ideal for use in electrical distribution boards, control panels, and switchboards.
