Screw Terminal Feed Through | Linergy TR Series | 2 Connection Points | 50mm² Cable Size | @Each of 1 | by Clipsal

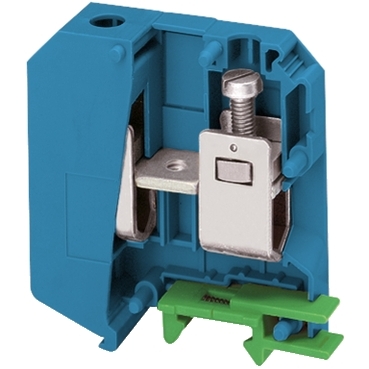

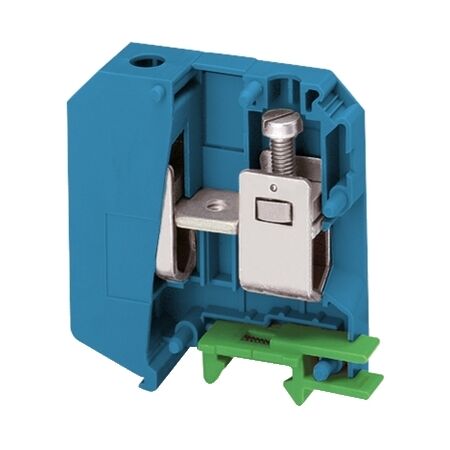

The Screw Terminal Feed Through from Clipsal is a reliable solution for secure wire connections, featuring a Linergy TR series design with 2 connection points and accommodating up to 50mm² cable size. Ideal for industrial control panels and electrical distribution boards, this durable blue terminal block ensures efficient circuit extension and compliance with Australian electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Screw Terminal Feed Through | Linergy TR Series | 2 Connection Points | 50mm² Cable Size | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHNSYTRV502BL
Alternatively Known As: Terminal block, Feed through terminal, Linergy TR terminal, Electrical connector block, Blue screw terminal
Technical Specifications
- Type: Screw terminal block
- Series: Linergy TR
- Connection: Feed through
- Number of points: 2
- Maximum cable size: 50mm²
- Colour: Blue
- Mounting: DIN rail
- Material: Polyamide housing
- Rated voltage: 1000V
- Rated current: 150A
- Wire stripping length: 18mm
- Tightening torque: 4.5Nm
- Dimensions (H x L x W): 48mm x 62mm x 15mm
- Weight: 0.15 kg
Key Features
- Screw terminal block for secure wire connection
- Feed through design for easy circuit extension
- Accommodates up to 50mm² cable size
- 2 connection points
- Durable blue housing for easy identification
- Linergy TR series for reliable performance
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian electrical standards and safe operation.
Applications
- Industrial control panels
- Electrical distribution boards
- Switchboards
- Commercial and industrial wiring installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reusable and durable design reduces replacement frequency and waste
- Supports efficient electrical connections, minimizing energy loss
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Linergy TR Screw Terminal Feed Through 2 Points 50mm² Blue (SCHNSYTRV502BL) is available for immediate purchase. Ideal for industrial and commercial electrical panel installations.
