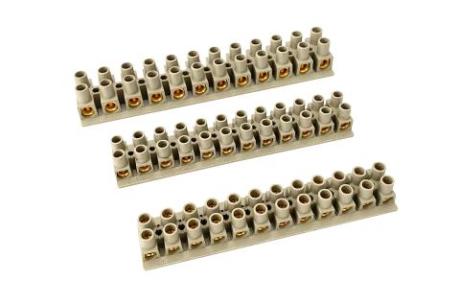

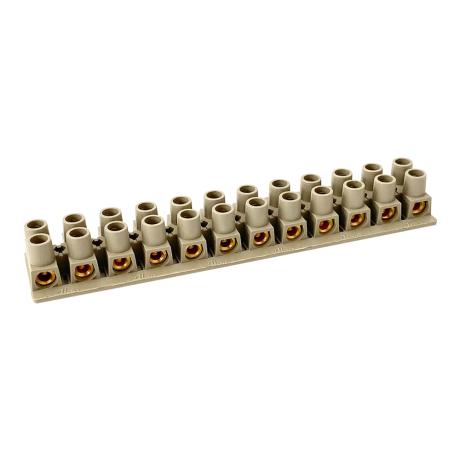

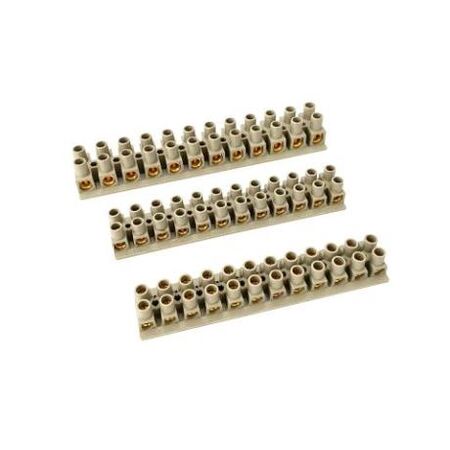

Screw Terminal Strip Connector 12 Way 20Amp | Solid Brass Tunnels | Flame Retardant | Rated Up to 500VAC | @Each by Wattmaster
The Screw Terminal Strip Connector 12 Way 20Amp is designed for reliable electrical connections, featuring solid brass tunnels for optimal conductivity and a flame retardant rating to UL94V0 standards. Ideal for residential, commercial, and industrial applications, this connector supports cable sizes from 0.5 to 6mm² and is perfect for control panels and distribution boards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Screw Terminal Strip Connector 12 Way 20Amp | Solid Brass Tunnels | Flame Retardant | Rated Up to 500VAC | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCTS20A
Alternatively Known As: 12 Way Terminal Strip, 20 Amp Terminal Block, Screw Terminal Connector, Electrical Terminal Strip
Technical Specifications
- Connector Type: Screw Terminal Strip
- Number of Ways: 12
- Current Rating: 20 Amp
- Voltage Rating: Up to 500VAC
- Cable Size Range: 0.5 to 6mm²
- Material: Solid Brass tunnels
- Flame Retardant Rating: UL94V0
- Compliance: AS/NZS IEC 60998.2.1
- Dimensions (H x L x W): 20mm x 30mm x 150mm
- Weight: 0.1 kg
Key Features
- Easily divided into the number of connections required
- Solid brass tunnels for reliable conductivity
- Flame retardant to UL94V0 standard
- Suitable for cable sizes from 0.5 to 6mm²
- Rated up to 500VAC
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical wiring and connections in residential, commercial, and industrial installations
- Suitable for connecting multiple cables in control panels and distribution boards
- Ideal for use in electrical maintenance and repair tasks
Standards & Compliance
- Complies with AS/NZS IEC 60998.2.1
Environmental Benefits
- Flame retardant materials enhance safety and reduce fire risk
- Durable solid brass construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Screw Terminal Strip Connector 12 Way 20Amp is available for immediate purchase, ideal for electrical wiring and connection applications in various settings.
