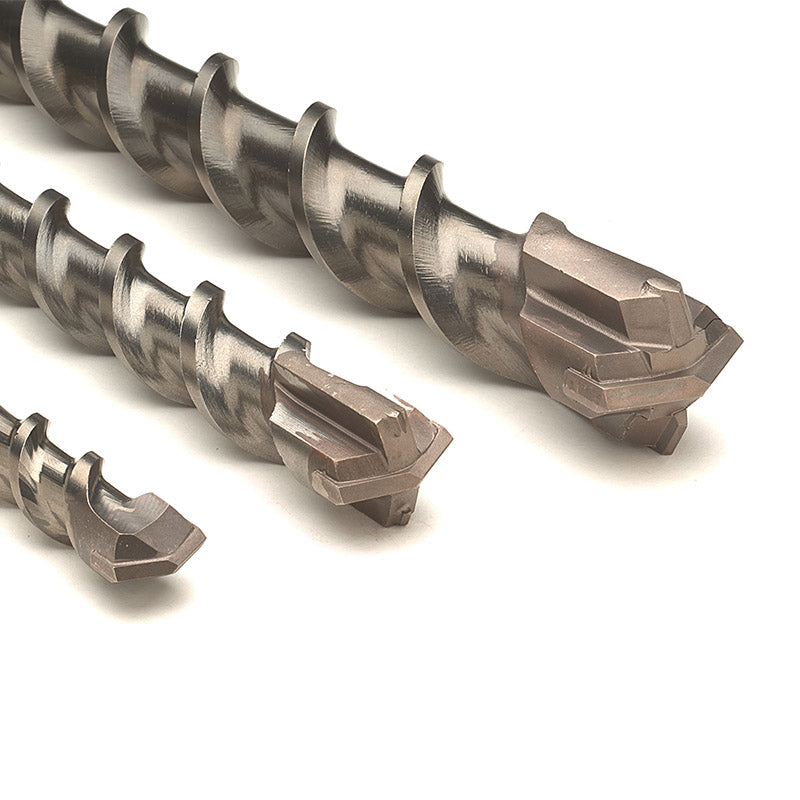

SDS Max 20 x 370 Cross Head Masonry Drill | Carbide Side Tips | Co-Planer Faceting | Heavy Duty Design | by Promac
The SDS Max 20 x 370 Cross Head Masonry Drill is engineered for heavy-duty concrete and masonry drilling. Featuring carbide side tips for enhanced cutting performance and a co-planer faceting design with a 30° rake angle, this drill bit ensures efficient spoil removal and longer tool life. Ideal for professionals tackling tough materials like granite, limestone, and brick, it’s a must-have for construction and maintenance tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SDS Max 20 x 370 Cross Head Masonry Drill | Carbide Side Tips | Co-Planer Faceting | Heavy Duty Design | by Promac
Brand: Promac
SKU: MAX20.0x370
Alternatively Known As: SDS Max Masonry Drill Bit, SDS Max Cross Head Drill, Heavy Duty Masonry Drill Bit, SDS Max Concrete Drill Bit
Technical Specifications
- Machine best suited for SDS Max
- Cross Head size range: 16-40mm
- Single tip size range: 10-14mm
- Carbide Side Tips for enhanced cutting performance
- Recommended slower speed for larger diameter bits
- Co-Planer Faceting with 30° rake angle
- Made in Sheffield, UK
- Dimensions (H x L x W): 20mm x 370mm x 20mm
- Weight: 1.2 kg
Key Features
- Cross Head Design (16-40mm) with four cutting edges for smoother and efficient drilling
- Carbide Side Tips act as complementary cutters for effective drilling motion
- Precision-machined deep clearways for quick spoil removal and extended tool life
- Co-Planer Faceting with 30° rake angle for faster drilling and longer tool life
Professional Installation Requirements
- Use with SDS Max compatible rotary hammer drills; professional handling recommended for optimal performance and safety.
Applications
- Heavy-duty concrete drilling
- General concrete drilling
- Hard and soft brick drilling
- Lightweight block drilling
- Natural stone drilling
- Constructional granite drilling
- Limestone drilling
- Fixing holes and anchors
- Through holes for cables, wires, and pipes
- Pilot holes for pipes and coring
- Property maintenance
Standards & Compliance
- Complies with AS/NZS 60745 for hand-held motor-operated electric tools safety
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste
- Efficient drilling reduces energy consumption during use
Warranty Information
Warranty details available upon request from Promac; typically includes coverage against manufacturing defects.
Available Now
The Promac SDS Max 20 x 370 Cross Head Masonry Drill Bit is available for immediate purchase, ideal for professional construction and maintenance applications.
