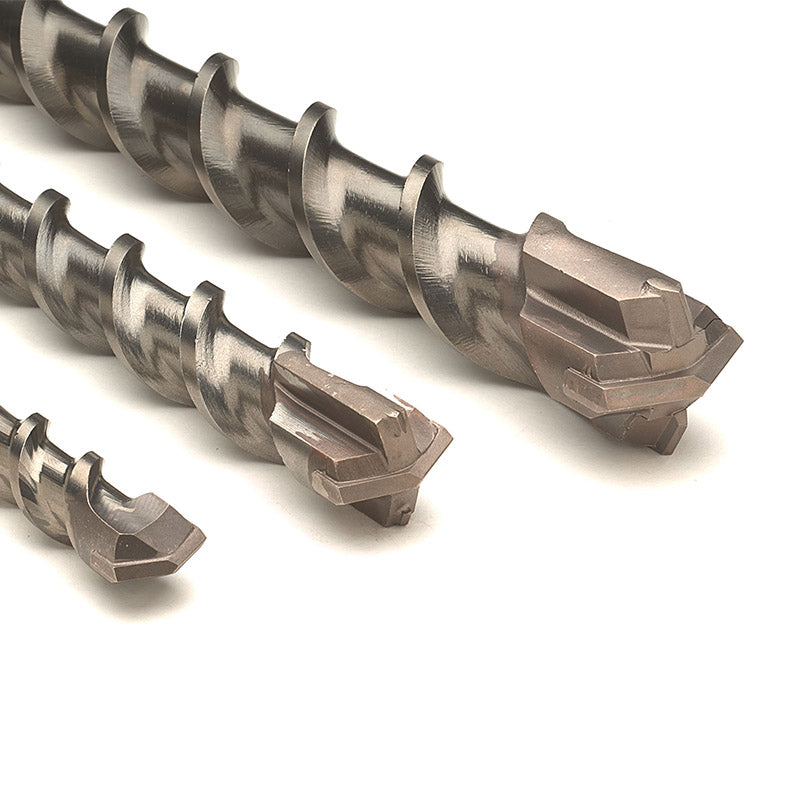

SDS Max 28 x 570 Cross Head Masonry Drill | Carbide Side Tips | Precision-Machined Design | by Promac
The SDS Max 28 x 570 Cross Head Masonry Drill is engineered for heavy-duty concrete drilling, featuring a cross head design with carbide side tips for enhanced cutting efficiency. Ideal for professionals, this drill bit excels in various applications, including natural stone and brick drilling, ensuring quick spoil removal and extended tool life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SDS Max 28 x 570 Cross Head Masonry Drill | Carbide Side Tips | Precision-Machined Design | by Promac
Brand: Promac
SKU: MAX28.0x570
Alternatively Known As: SDS Max Masonry Drill Bit, SDS Max Cross Head Drill, Heavy Duty Masonry Drill Bit, SDS Max Concrete Drill Bit
Technical Specifications
- Machine best suited for SDS Max
- Cross Head size range: 16-40mm
- Single tip size range: 10-14mm
- Carbide Side Tips for enhanced cutting efficiency
- Recommended speed: slower speed for larger diameter bits
- Technical tip: use grease on shank to reduce heat and extend tool life
- Made in Sheffield, UK
- Dimensions (H x L x W): 28mm x 570mm x 28mm
- Weight: 1.2 kg
Key Features
- Cross Head Design (16-40mm) with four cutting edges for smoother, efficient drilling
- Carbide Side Tips act as complementary cutters for effective drilling motion
- Precision-machined deep clearways for quick spoil removal and extended tool life
- Co-Planer Faceting with 30° rake angle for faster drilling and longer tool life
Professional Installation Requirements
- Use with SDS Max compatible rotary hammer drills; professional handling recommended for optimal performance and safety.
Applications
- Heavy-duty concrete drilling
- General concrete drilling
- Hard and soft brick drilling
- Lightweight block drilling
- Natural stone drilling
- Constructional granite drilling
- Limestone drilling
- Fixing holes and anchors
- Through holes for cables, wires, and pipes
- Pilot holes for pipes and coring
- Property maintenance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste
- Efficient drilling reduces energy consumption during use
Warranty Information
Warranty details available upon request from Promac; typically includes coverage against manufacturing defects.
Available Now
The Promac SDS Max 28 x 570 Cross Head Masonry Drill Bit is available for immediate purchase, ideal for heavy-duty construction and maintenance applications.
