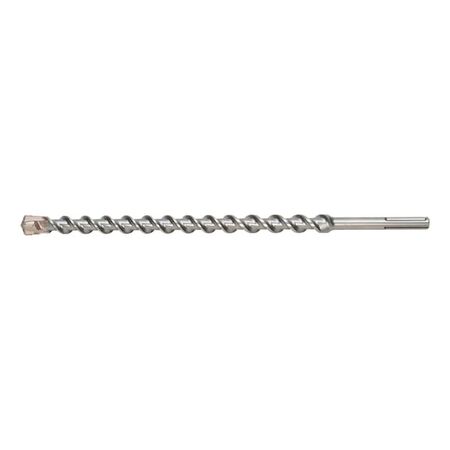

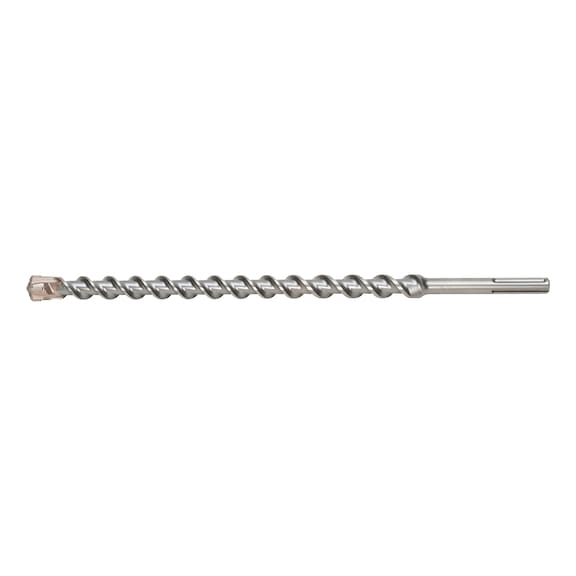

SDS-max Drill Bit 14mm | 4 Cutting Edges | Core Reinforced | by Wurth
The SDS-max Drill Bit with a 14mm diameter and four cutting edges is designed for efficient drilling into reinforcements and hard materials. Ideal for construction and machining tasks, this heavy-duty drill bit features core reinforcement for enhanced durability and improved drilling speed, ensuring precise and reliable performance throughout its service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SDS-max Drill Bit 14mm | 4 Cutting Edges | Core Reinforced | by Wurth
Brand: Wurth
SKU: 647051434
Alternatively Known As: SDS-max drill bit, Reinforcement drill bit, Heavy-duty drill bit, Core reinforced drill bit
Technical Specifications
- Diameter: 14 mm
- Length: 340 mm
- Working length: 200 mm
- Number of cutting edges: 4 PCS
- Number of spirals: 4 PCS
- Drilling speed (point system): 2 of 4 points
- Smoothness of running (points system): 4 of 4 points
- Accuracy (points system): 4 of 4 points
- Reinforcement strength (points system): 4 of 4 points
- Service life (points system): 4 of 4 points
- Tool holding device: Suitable for SDS-max
- Dimensions (H x L x W): 14mm x 340mm x 14mm
- Weight: 1.2 kg
Key Features
- Symmetrical head with four cutting edges for efficient drilling
- Vario conveyor with core reinforcement for durability
- Significantly improved compatibility with reinforcements
- Noticeably quicker drilling speed
- Perfect bore properties over the entire service life
- Improved drilling speed and dust removal with increased breakage protection
- Optimum guidance in drilled hole
- Precise spot drilling
Professional Installation Requirements
- Professional use recommended; ensure compatibility with SDS-max tool holders and follow safety guidelines during operation.
Applications
- Drilling into reinforcements and hard materials
- Construction and machining tasks requiring precise and durable drill bits
- Suitable for use with SDS-max tool holding devices
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste
- Efficient drilling reduces energy consumption during use
Warranty Information
Wurth offers a standard warranty against manufacturing defects; please refer to the official warranty policy for details.
Available Now
The Wurth SDS-max Drill Bit 14mm diameter is available now for immediate purchase. Ideal for construction, machining, and reinforcement drilling applications.
