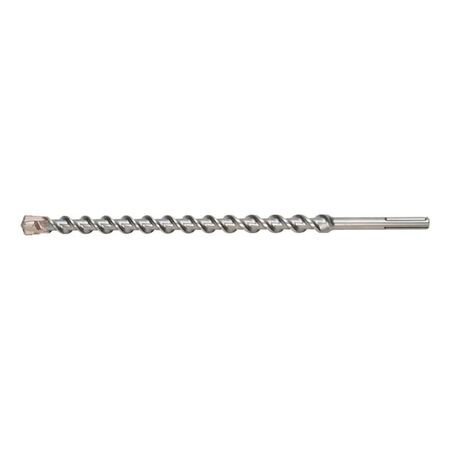

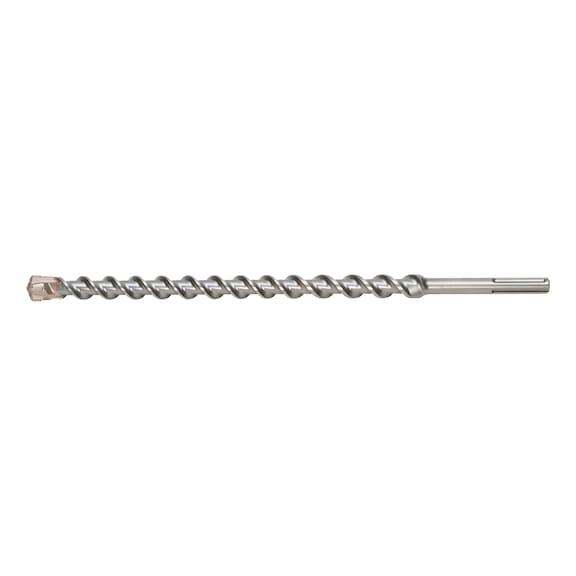

SDS-max Drill Bit 14mm | 4 Cutting Edges | Core Reinforced | by Wurth
The SDS-max Drill Bit 14mm is engineered for efficient drilling in hard materials and reinforcements. With a symmetrical head featuring four cutting edges and core reinforcement, it ensures durability and improved drilling speed. Ideal for construction and machining tasks, this drill bit is designed for use with SDS-max compatible power tools, providing precise spot drilling and optimum guidance throughout its service life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SDS-max Drill Bit 14mm | 4 Cutting Edges | Core Reinforced | by Wurth
Brand: Wurth
SKU: 647051454
Alternatively Known As: SDS-max drill bit, Reinforced drill bit, Heavy-duty drill bit, Core reinforced drill bit
Technical Specifications
- Diameter: 14 mm
- Length: 540 mm
- Working length: 400 mm
- Number of cutting edges: 4 PCS
- Number of spirals: 4 PCS
- Drilling speed (point system): 2 of 4 points
- Smoothness of running (points system): 4 of 4 points
- Accuracy (point system): 4 of 4 points
- Reinforcement strength (point system): 4 of 4 points
- Service life (points system): 4 of 4 points
- Tool holding device: Suitable for SDS-max
- Dimensions (H x L x W): 14mm x 540mm x 14mm
- Weight: 1.2 kg
Key Features
- Symmetrical head with four cutting edges for efficient drilling
- Vario conveyor with core reinforcement for durability
- Significantly improved compatibility with reinforcements
- Noticeably quicker drilling speed
- Perfect bore properties over the entire service life
- Improved drilling speed and dust removal with increased breakage protection
- Optimum guidance in drilled hole
- Precise spot drilling
Professional Installation Requirements
- Use with SDS-max compatible power tools by trained professionals for optimal performance and safety.
Applications
- Drilling in reinforcements and hard materials
- Construction and machining tasks requiring precise and durable drill bits
- Suitable for use with SDS-max tool holding devices
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste
- Efficient drilling reduces energy consumption during use
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth SDS-max Drill Bit 14mm x 540mm is available now for immediate purchase. Ideal for construction, machining, and reinforcement drilling applications.
