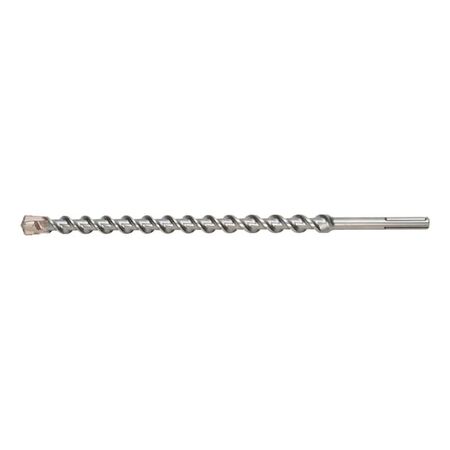

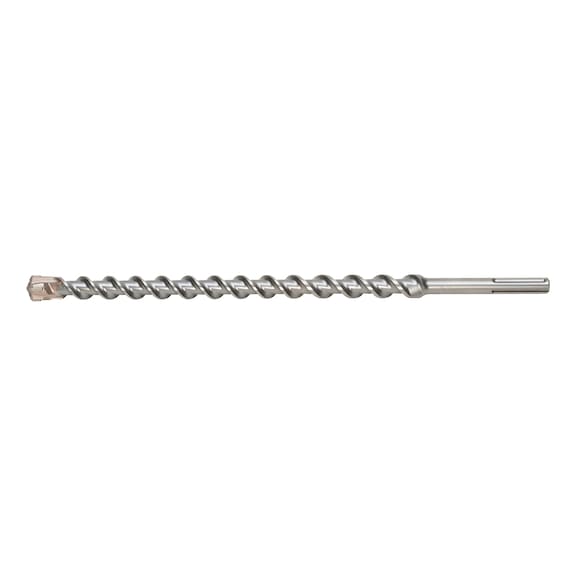

SDS-max Drill Bit 20mm | 520mm Length | 4 Cutting Edges | Core Reinforced | by Wurth
The SDS-max Drill Bit 20mm is engineered for precision drilling in reinforced concrete and hard materials. With a robust 520mm length and four cutting edges, it ensures efficient performance and durability. Ideal for professional construction and machining tasks, this drill bit offers improved drilling speed and optimal guidance, making it a reliable choice for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SDS-max Drill Bit 20mm | 520mm Length | 4 Cutting Edges | Core Reinforced | by Wurth
Brand: Wurth
SKU: 647052052
Alternatively Known As: SDS-max drill bit, Reinforced concrete drill, Heavy-duty masonry drill bit, Core reinforced drill bit
Technical Specifications
- Diameter: 20 mm
- Length: 520 mm
- Working length: 400 mm
- Number of cutting edges: 4 PCS
- Number of spirals: 4 PCS
- Drilling speed (point system): 2 of 4 points
- Smoothness of running (points system): 4 of 4 points
- Accuracy (point system): 4 of 4 points
- Reinforcement strength (point system): 4 of 4 points
- Service life (point system): 4 of 4 points
- Tool holding device: Suitable for SDS-max
- Dimensions (H x L x W): 20mm x 520mm x 20mm
- Weight: 1.2 kg
Key Features
- Symmetrical head with four cutting edges for efficient drilling
- Vario conveyor with core reinforcement for durability
- Significantly improved compatibility with reinforcements
- Noticeably quicker drilling speed
- Perfect bore properties over the entire service life
- Improved drilling speed and dust removal with increased breakage protection
- Optimum guidance in drilled hole
- Precise spot drilling
Professional Installation Requirements
- Use with compatible SDS-max rotary hammer drills by trained professionals for optimal performance and safety.
Applications
- Drilling in reinforcements and hard materials
- Construction and machining tasks requiring precise and durable drill bits
- Professional use in concrete, masonry, and reinforced materials
Standards & Compliance
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste
- Efficient drilling reduces energy consumption during use
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth SDS-max Drill Bit 20mm Diameter 520mm Length is available for immediate purchase, ideal for professional construction and machining applications.
