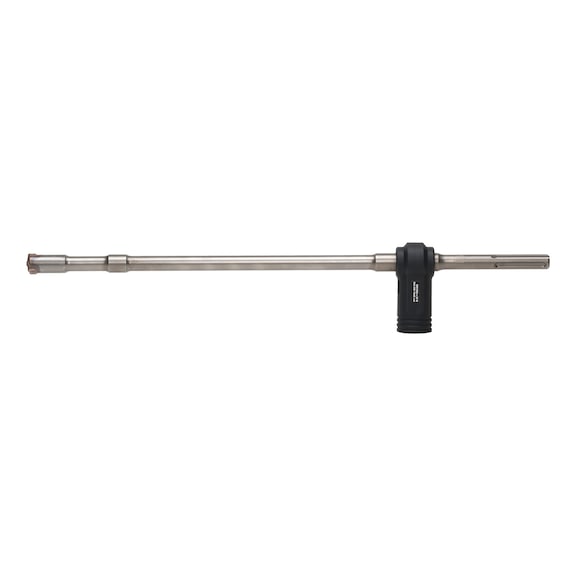

SDS-max Hammer Drill Bit 25mm | Dust-Free Drilling | 4 Cutting Edges | by Wurth
The SDS-max Hammer Drill Bit 25mm is designed for dust-free drilling in concrete and masonry, featuring a multi-cutter head for efficient suction and precise spot drilling. Ideal for professional construction and machining applications, this drill bit enhances user safety and extends service life by minimizing airborne dust particles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SDS-max Hammer Drill Bit 25mm | Dust-Free Drilling | 4 Cutting Edges | by Wurth
Brand: Wurth
SKU: 647402560
Alternatively Known As: SDS-max hammer drill bit, dust extraction drill bit, concrete drill bit, masonry drill bit
Technical Specifications
- Diameter: 25 mm
- Length: 600 mm
- Working length: 400 mm
- Number of cutting edges: 4 PCS
- Tool holding device: Suitable for SDS-max
- Drilling speed rating: 3 of 4 points
- Smoothness of running rating: 3 of 4 points
- Accuracy rating: 3 of 4 points
- Reinforcement strength rating: 2 of 4 points
- Service life rating: 4 of 4 points
- Dimensions (H x L x W): 25mm x 600mm x 25mm
- Weight: 1.5 kg
Key Features
- Dust-free drilling with immediate dust suction at the drill hole
- Protects user health and increases drill bit service life
- No need for subsequent cleaning of drill holes
- Multi-cutter head for drilling and suction in one step
- Tailored head geometry for optimal drilling performance
- One-piece carbide element for 14-16 mm diameters for high stability
- Multi-piece carbide element for 18-35 mm diameters for faster drilling and improved torsional force buffering
- Suitable for all standard, certified vacuum cleaners of dust class M
- Precise spot drilling capability
Professional Installation Requirements
- Use by trained professionals with appropriate SDS-max hammer drills and certified dust class M vacuum cleaners. Structural engineer approval required for drilling through iron reinforcements.
Applications
- Drilling in concrete, masonry, and reinforced concrete
- Construction sites requiring dust-free drilling
- Use with standard certified vacuum cleaners of dust class M
- Professional machining and construction work
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Dust-free drilling reduces airborne dust particles, improving air quality on construction sites
- Minimizes health risks associated with dust inhalation
- Reduces cleaning and waste from drilling operations
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth Fast Hammer Drill Bit 25mm SDS-max with dust-free drilling is available now for immediate purchase. Ideal for professional construction and machining applications requiring clean and efficient drilling.
