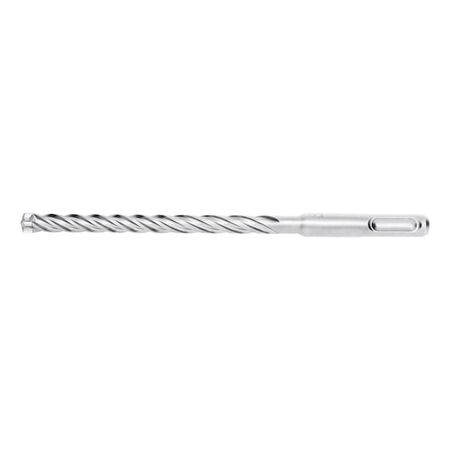

SDS-plus Drill Bit 5.5mm | 4 Cutting Edges | Reinforced Concrete | by Wurth
The SDS-plus Drill Bit 5.5mm is engineered for precision drilling into reinforced concrete and hard materials. With a unique one-piece head featuring four cutting edges and a four-spiral Vario feed helix, it ensures improved drilling speed and optimal dust removal. Ideal for construction and machining tasks, this drill bit is designed for use with SDS-plus rotary hammer drills, providing high stability and accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SDS-plus Drill Bit 5.5mm | 4 Cutting Edges | Reinforced Concrete | by Wurth
Brand: Wurth
SKU: 648055511
Alternatively Known As: SDS-plus drill bit, Reinforced concrete drill bit, Carbide drill bit, SDS drill bit 5.5mm
Technical Specifications
- Diameter: 5.5 mm
- Length: 115 mm
- Working length: 50 mm
- Number of cutting edges: 4
- Number of spirals: 4
- Tool holding device: Suitable for SDS-plus
- Drilling speed rating: 2 of 4 points
- Smoothness of running: 4 of 4 points
- Accuracy: 4 of 4 points
- Reinforcement strength: 4 of 4 points
- Service life: 4 of 4 points
- Dimensions (H x L x W): 115mm x 115mm x 5.5mm
- Weight: 0.1 kg
Key Features
- Symmetrical, one-piece head with four cutting edges
- Four-spiral Vario feed helix with core reinforcement
- Tailored head geometry for drill bit diameter
- One-piece carbide element for 5-16 mm diameters for high stability
- Multi-piece carbide element for 18-32 mm diameters for faster drilling and torsional force buffering
- Improved drilling speed and dust removal
- Optimum guidance in drilled hole
- Precise spot drilling
Professional Installation Requirements
- Use with SDS-plus compatible rotary hammer drills; professional handling recommended for optimal performance and safety.
Applications
- Drilling into reinforced concrete and hard materials
- Construction and machining tasks requiring precision drilling
- Suitable for use with SDS-plus tool holding devices
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable design reduces frequency of replacement and waste
- Efficient drilling reduces energy consumption
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth SDS-plus Drill Bit 5.5mm x 115mm is available now for immediate purchase. Ideal for construction and machining applications requiring reinforced material drilling.
