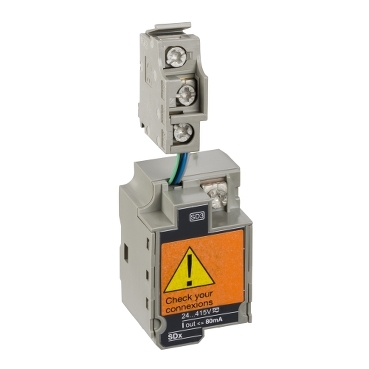

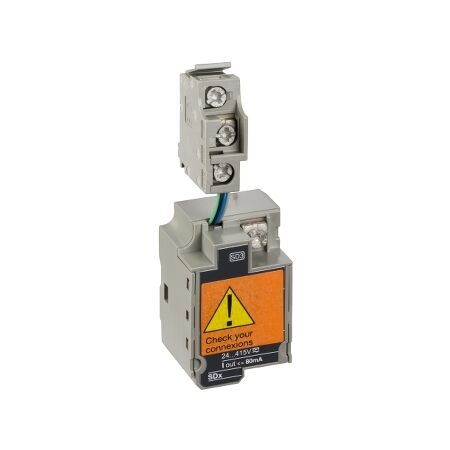

SDX Output Modules TRIP Unit A | Remote Trip Indication | Compatible with NSX100-630 | by Clipsal
The SDX Output Modules TRIP Unit A is designed for seamless integration with NSX100 to NSX630 circuit breakers, providing reliable remote trip indication output. Ideal for industrial and commercial electrical distribution systems, this plug-in accessory enhances monitoring and control, ensuring efficient operation and rapid response to electrical faults.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SDX Output Modules TRIP Unit A | Remote Trip Indication | Compatible with NSX100-630 | by Clipsal
Brand: Clipsal
SKU: SCHLV429532
Alternatively Known As: SDX Output Module, NSX Trip Unit Accessory, Schneider Electric Trip Output Module, Circuit Breaker Trip Module
Technical Specifications
- Compatible with: NSX100 to NSX250, NSX400 to NSX630 circuit breakers
- Function: Remote trip indication output
- Mounting: Plug-in accessory for circuit breaker
- Electrical connection: Terminal block
- Operating voltage: 24-250V AC/DC
- Output type: Dry contact relay
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 60mm x 80mm x 45mm
- Weight: 0.25 kg
Key Features
- Accessory module for NSX100 to NSX630 circuit breakers
- Provides remote indication of circuit breaker tripping
- Enhances monitoring and control of electrical protection systems
- Easy integration with Schneider Electric NSX series
- Reliable and robust design for industrial environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician familiar with circuit breaker accessories and Australian electrical standards.
Applications
- Electrical distribution panels
- Industrial switchboards
- Commercial circuit protection systems
- Integration with NSX100 to NSX630 circuit breakers
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient monitoring, reducing unnecessary downtime and energy waste.
- Facilitates rapid response to electrical faults, minimizing system losses.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SDX Output Modules TRIP Unit A (SCHLV429532) is available for immediate purchase. Ideal for industrial and commercial electrical distribution systems requiring enhanced trip indication and monitoring.
