Sealable Terminal Shields for DPX3 160 Circuit Breaker | IP30 Protection | Includes Fixing Screws & Insulated Barriers | @Each of 1 | by Legrand
Sealable terminal shields for DPX3 160 circuit breaker enhance electrical safety with IP30 protection and include essential components like fixing screws and insulated phase barriers. Designed for use in electrical distribution boards and industrial switchboards, these shields ensure compliance with IEC 60947-2 standards, making them ideal for qualified electricians looking to improve safety and reliability in low voltage applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sealable Terminal Shields for DPX3 160 Circuit Breaker | IP30 Protection | Includes Fixing Screws & Insulated Barriers | @Each of 1 | by Legrand
Brand: Legrand
SKU: 422056
Alternatively Known As: DPX3 160 Terminal Shields, Circuit Breaker Terminal Covers, Sealable Phase Barriers for DPX3
Technical Specifications
- Rated permanent current: 250 A
- Rated voltage: 220-690 V
- Short-circuit breaking capacity Icu at 400 V, 50 Hz: 36 kA
- Overload release current setting: 100-250 A
- Adjustment range short-term delayed short-circuit release: 150-2500 A
- Adjustment range undelayed short-circuit release: 5000 A
- Device construction: Built-in fixed version
- Integrated earth fault protection: No
- Type of electrical connection: Screw connection
- Number of auxiliary contacts: 2 change-over contacts
- Switched-off indicator: Yes
- Integrated under voltage release: Yes
- Number of poles: 3
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive optional: Yes
- Degree of protection: IP30
- Contains batteries: Yes (2 lithium batteries CR1616 included)
- Dimensions (H x L x W): 120mm x 100mm x 150mm
- Weight: 1.5 kg
Key Features
- Sealable terminal shields designed for DPX3 160 circuit breaker 3 poles

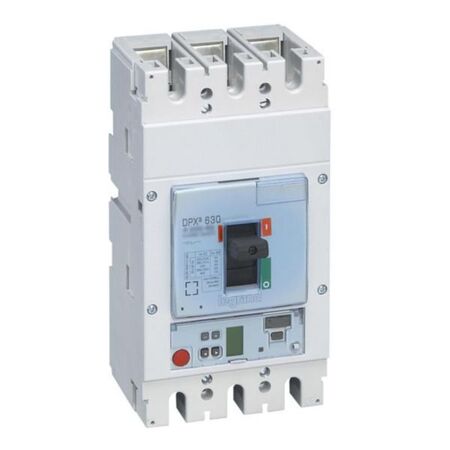

- Compatible with DPX³ 630 - S2 electronic release MCCBs from 250 to 630 A
- Moulded case MCCBs for switching, control isolation, and protection
- Includes fixing screws, connection plates for bars, and insulated phase barriers
- Conforms to IEC 60947-2 standards
- Seal adjustment feature for enhanced security
- Suitable for mounting on plates in XL³ cabinets and enclosures
- IP30 degree of protection
- Screw connection for main circuit
- Includes 2 auxiliary change-over contacts
- Integrated under voltage release and switched-off indicator
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with DPX3 circuit breakers.
Applications
- Electrical distribution boards
- Industrial and commercial switchboards
- Low voltage electrical line protection
- Modular switchgear assemblies
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances electrical safety reducing risk of faults and electrical fires
- Supports compliance with safety standards reducing environmental hazards
- Durable materials reduce need for frequent replacements
Warranty Information
Standard Legrand warranty applies, typically 1 to 3 years depending on region and product registration.
Available Now
Legrand Sealable Terminal Shields for DPX3 160 Circuit Breaker 3 Poles are available for immediate purchase, ideal for enhancing safety and compliance in electrical switchboards and power cabinets.
