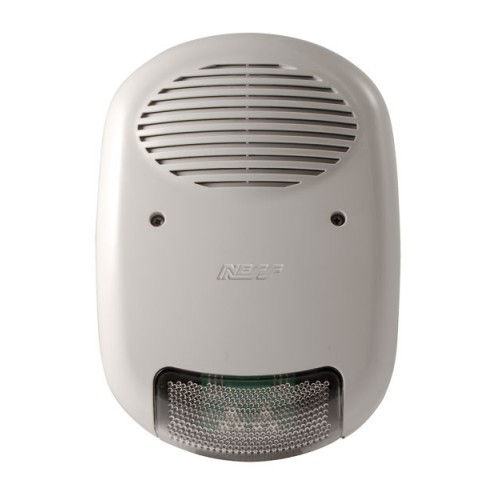

Security Alarm Siren with Battery 12V LED Flasher K-2001 Ness

BRAND: Ness
SKU: K-2001
$226.00 List price: $301.40
+ −
30 Days Return Electricians Unlock Trade Access
Ness security alarm siren features 12V power, battery backup, tamper protection and an LED flasher. Ideal for alarm systems.

Alternatively Known As: Ness IVY-F Satellite Siren, Ness K-2001 Alarm Siren, Outdoor Security Siren and Strobe

Technical Specifications
  • Model: IVY-F standard self-powered siren/flasher
  • SKU: K-2001
  • Operating Voltage: Nominal 13.8V DC; 13.2–14.0V DC range
  • Minimum Current Draw: 15mA
  • Maximum Current Draw from Panel: 150mA
  • Maximum Battery Current Draw: 900mA
  • Sound Output: 104dB(A) at 3m
  • Carrier Frequency: 1148Hz
  • Flash Rate: Programmable 36, 46 or 56 flashes per minute
  • Maximum Alarm Time: Programmable 3, 6 or 9 minutes
  • Backup Battery: 12V 2.1Ah rechargeable battery; supplied fitted battery is specified by Ness as 2.2Ah
  • Ingress Protection: IP34
  • Operating Temperature: -25°C to +55°C
  • Alarm Trigger: Power failure or ancillary START input
  • Construction: Heavy-duty plastic cover with metal inner shroud
  • Compliance Marking: CEI 79-2 Level 2 performance specified in the manufacturer’s manual
  • Dimensions (H x L x W): 290mm x 210mm x 95mm
  • Weight: 2.2 kg
Key Features
  • Self-powered external siren for professional intrusion alarm systems
  • Bright HiRes LED flasher technology with low power consumption
  • Supplied with a 12V rechargeable backup battery
  • Tamper protection against dislodgement, forced opening and wire cutting
  • Additional foam-tamper protection using internal infrared speaker monitoring
  • Programmable alarm time, input polarity, flash frequency and trigger signal
  • Two status LEDs for system and fault indication
  • Audible alarm patterns can be programmed for event identification
  • Suitable for standard alarm systems with ancillary START input
Professional Installation Requirements
  • Installation, wiring and commissioning should be performed by a suitably qualified security alarm technician in accordance with the manufacturer’s installation instructions and AS/NZS 2201.1. The unit is an outdoor alarm warning device and must be correctly mounted, tamper-connected and integrated with a compatible alarm control panel.
Applications
  • Residential intrusion alarm systems
  • Commercial and retail security systems
  • Office and industrial security installations
  • Outdoor satellite siren and visual alarm warning applications
  • Replacement or additional siren for compatible 12V alarm control panels
Standards & Compliance
  • AS/NZS 2201.1:2007 for the design, installation, commissioning and maintenance of intruder alarm systems; applicability is to the installed alarm system rather than a product-specific certification claim
  • AS/NZS 3820 may apply to the essential safety requirements for low-voltage electrical equipment when assessed for Australian supply
Environmental Benefits
  • Low-power LED flasher technology reduces operating energy consumption compared with conventional flashing lamps
  • Rechargeable backup battery reduces reliance on disposable batteries
  • Ness publishes RoHS compliance documentation for its product range
  • Durable tamper-resistant construction may extend service life and reduce replacement waste
Warranty Information

Ness manufactured or supplied products are covered by Ness Corporation’s general warranty for 3 years from the date of purchase, subject to the published warranty terms and exclusions.

Available Now

Available through Ness Corporation and authorised Australian security and electrical distributors.
