Security Keypad Ocean Mist with SMS Monitoring to Suit D8X4G Ness

BRAND: Ness
SKU: K-9304
$733.60 List price: $978.10
+ −
30 Days Return Electricians Unlock Trade Access
Ness security keypad features an Ocean Mist finish and SMS monitoring, to Suit D8X4G. Ideal for alarm system installs.

Alternatively Known As: Ness D8X4G Ocean Mist Keypad Kit, Ness Saturn+ Ocean Mist Alarm Keypad Kit, Ness D8XCEL4G Ocean Mist Security Panel

Technical Specifications
  • Keypad Model: Saturn+ Ocean Mist, part number 106-323-OMT
  • Kit SKU: K-9304
  • Compatibility: Ness D8XCEL4G, D8X and D16X control panels
  • Keypad Display: High-contrast LCD icon display with white and red backlighting
  • Keypad Supply: 12 VDC from the control panel
  • Control Panel Zones: 8 zones, expandable within the D8XCEL4G platform
  • Communications: Integrated 4G communicator with SMS operation and programming
  • SMS Monitoring: Alarm reports for self-monitoring or central-station monitoring
  • Power Input: 17 VAC or 20 VDC
  • Auxiliary Output: 13.8 VDC at 800 mA
  • Backup Battery: 12 V, 7 Ah sealed lead-acid battery
  • Keypad Capacity: Up to three mixed keypads or four Navigator keypads
  • Manufacturing: Made in Australia
  • Dimensions (H x L x W): 300mm x 235mm x 90mm
  • Weight: 4.5 kg
Key Features
  • Ocean Mist Saturn+ premium keypad with glossy glass-look fascia
  • High-contrast LCD icon display with adjustable brightness
  • White and red LCD backlighting, including alarm-memory indication
  • Satin-finish tactile buttons with laser-etched graphics
  • Adjustable keypad beep volume and blue keypad backlighting
  • Integrated 4G communicator for SMS alarm reporting and remote programming
  • Supports SMS self-monitoring or central-station monitoring

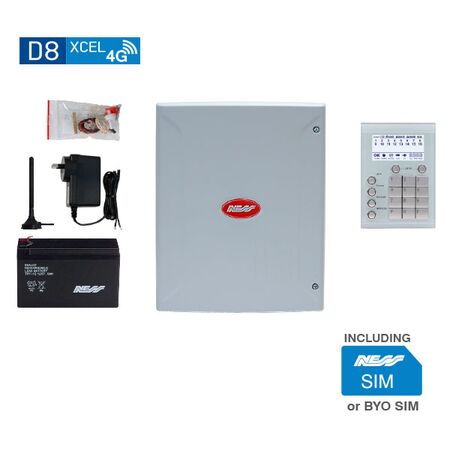

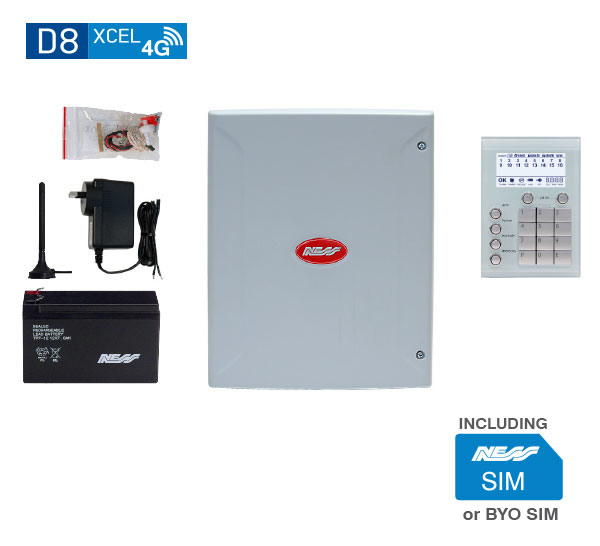

  • Supplied with keypad, wiring loom, surface backbox and manual
  • Supports keypad panic and duress functions
  • Includes Ness SIM for the D8XCEL4G panel
Professional Installation Requirements
  • Installation, configuration and commissioning should be performed by a suitably qualified security-alarm technician. Any 240 V AC connection associated with the power supply must be completed in accordance with applicable Australian electrical requirements.
Applications
  • Residential security alarm systems
  • Small commercial security installations
  • D8XCEL4G alarm systems requiring SMS self-monitoring
  • Security installations requiring keypad arming, disarming and status display
  • Alarm systems requiring 4G communication and remote SMS programming
Standards & Compliance
  • AS/NZS 2201.1:2007 is the applicable reference for client-premises intruder alarm system design, installation, commissioning and maintenance; verify the complete installation against the current requirements.
  • AS/NZS IEC 60839.11.1:2019 may be relevant where the system is configured for electronic access-control functions; product-specific certification was not identified.
Environmental Benefits
  • Low-voltage security electronics can be serviced and replaced at component level, helping extend system life.
  • The sealed lead-acid backup battery is replaceable and recyclable through appropriate battery-recycling channels.
  • Integrated 4G and SMS monitoring can reduce the need for additional communications hardware in the alarm installation.
  • Durable keypad and control-panel components can reduce replacement frequency and associated electronic waste.
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, unless otherwise specified. Warranty claims are subject to Ness terms and conditions and exclusions for misuse, lightning or power-surge damage.

Available Now

Available through Ness and authorised Australian security-equipment distributors.
