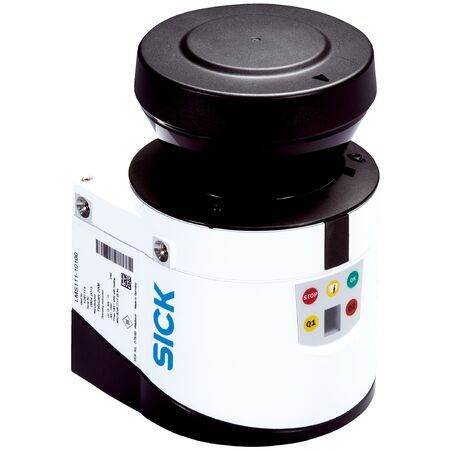

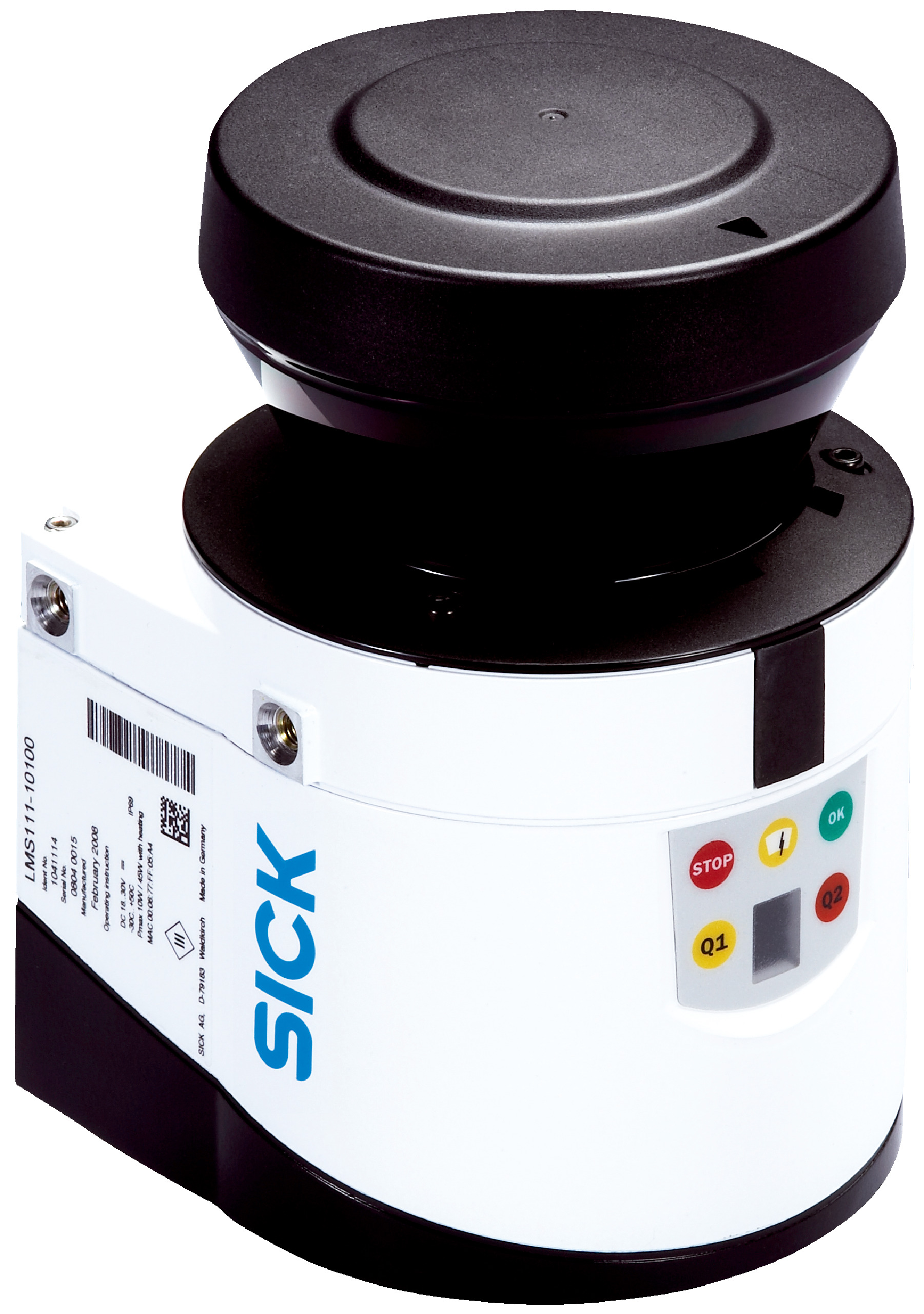

Security Laser Scanner | Infrared Light Source | 270° Aperture Angle | IP67 Rated | by SICK
The Security Laser Scanner is designed for versatile security applications, featuring an infrared light source and a wide 270° aperture angle. With a working range of 0.5 m to 20 m and fog correction capabilities, it ensures reliable performance in both indoor and outdoor environments. Built for professionals, this scanner offers high electromagnetic compatibility and is IP67 rated for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Security Laser Scanner | Infrared Light Source | 270° Aperture Angle | IP67 Rated | by SICK
Brand: SICK
SKU: 1051403
Alternatively Known As: Security Laser Scanner, Infrared Laser Scanner, SICK LMS133 Scanner, Industrial Security Scanner
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution: 0.25° and 0.5° options
- Scanning frequency: 25 Hz, 50 Hz
- Working range: 0.5 m to 20 m
- Scanning range at 10% remission factor: 18 m
- Scanning range at 90% remission factor: 20 m
- Amount of evaluated echoes: 2
- Fog correction: Yes
- Connection type: 1 x M12 round connector
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 8 W, heating typical 35 W
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Data transmission rate: 10/100 MBit/s Ethernet, 9.6 kBaud to 115.2 kBaud serial
- Digital inputs: 4
- Digital outputs: 3 (2 relay, 1 digital)
- Ambient operating temperature: -30 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 162mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety.
- Wide horizontal aperture angle of 270° with 0.25° angular resolution.
- Scanning frequency options of 25 Hz and 50 Hz.
- Working range from 0.5 m to 20 m with fog correction.
- Heating function for reliable operation in cold environments.
- IP67 rated enclosure for dust and water protection.
- Multiple interfaces including Ethernet (TCP/IP), RS-232, and CAN.
- Digital inputs and outputs with relay and digital output options.
- 7-segment display with LEDs for device status and warnings.
- High electromagnetic compatibility and vibration/shock resistance.
- Operating temperature range from -30 °C to +50 °C.
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical connections to ensure compliance with safety standards.
Applications
- Security
- Outdoor
- Indoor
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with typical 8 W operation and efficient heating system.
- Durable IP67 housing reduces environmental impact by extending product lifespan.
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The SICK LMS133-10100 Security Laser Scanner is available for immediate purchase, ideal for security applications in both indoor and outdoor environments.
