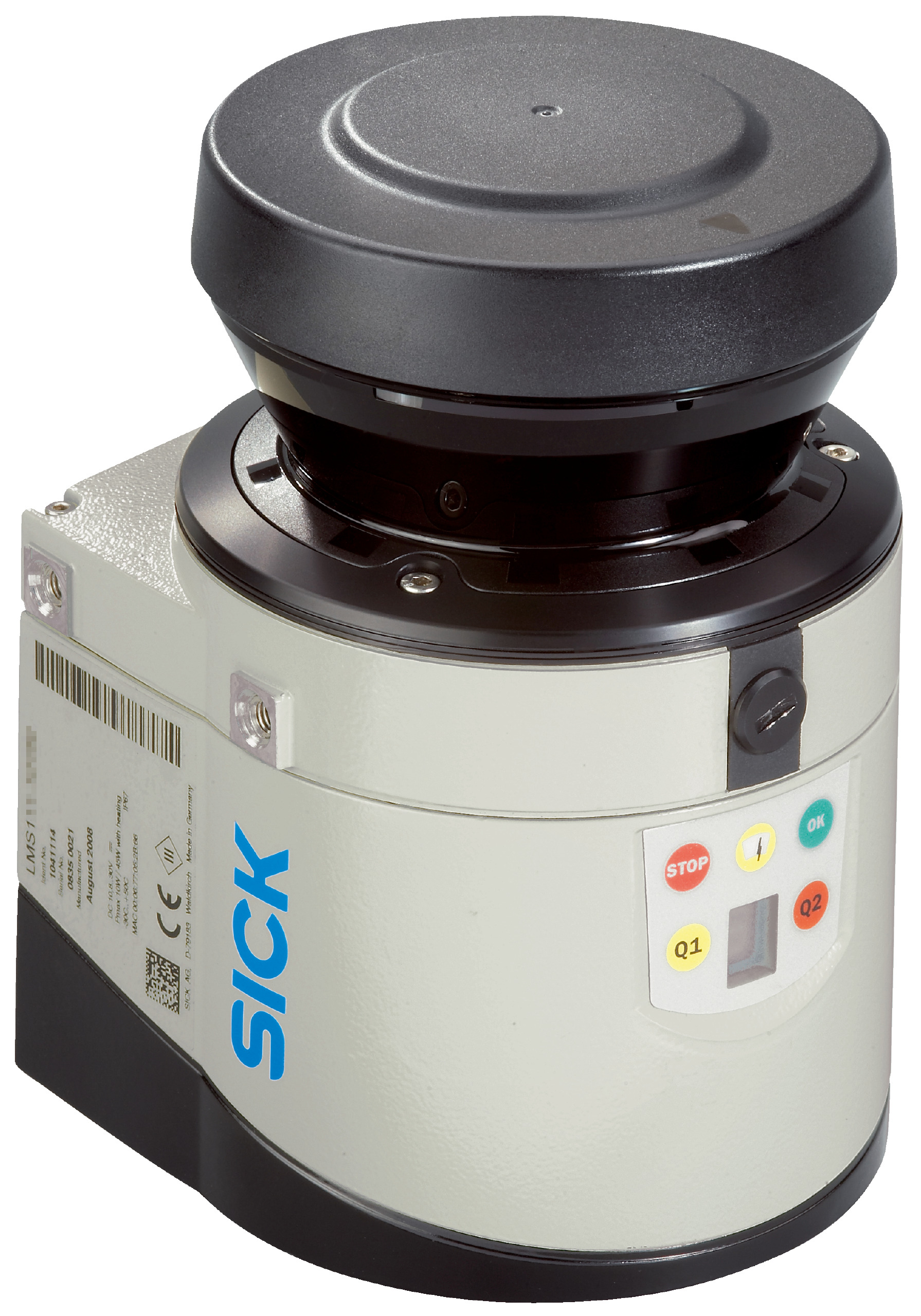

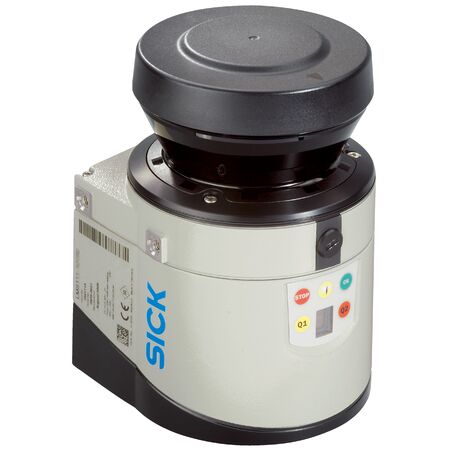

Security Laser Scanner LMS131-10100 | Infrared Light Source | IP67 Rated | 270° Aperture Angle | by SICK
The Security Laser Scanner LMS131-10100 is designed for reliable perimeter and area monitoring, featuring an infrared light source and a wide 270° horizontal aperture angle. With a working range of 0.5 m to 20 m and IP67 enclosure rating, it’s perfect for both indoor and outdoor environments, ensuring optimal detection even in adverse conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Security Laser Scanner LMS131-10100 | Infrared Light Source | IP67 Rated | 270° Aperture Angle | by SICK
Brand: SICK
SKU: 1051379
Alternatively Known As: Security Laser Scanner, Infrared Laser Scanner, SICK LMS131, Perimeter Laser Sensor
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 270° horizontal
- Angular resolution: 0.25° and 0.5° options
- Scanning frequency: 25 Hz, 50 Hz
- Working range: 0.5 m to 20 m
- Scanning range at 10% remission factor: 18 m
- Scanning range at 90% remission factor: 20 m
- Amount of evaluated echoes: 2
- Heating: Yes
- Connection type: 1 x M12 round connector
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 8 W, heating typical 35 W
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Data transmission rate: 9.6 kBaud to 115.2 kBaud
- Ambient operating temperature: –30 °C to +50 °C
- Storage temperature: –30 °C to +70 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 162mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety
- Wide horizontal aperture angle of 270° with 0.25° angular resolution
- Scanning frequency options of 25 Hz and 50 Hz
- Working range from 0.5 m up to 20 m
- Fog correction capability for enhanced detection in adverse conditions
- IP67 rated enclosure for dust and water protection
- Integrated heating for operation in cold environments
- Multiple interfaces including Ethernet (TCP/IP), RS-232, and CAN
- Digital inputs and outputs with relay and digital options
- 7-segment display with LEDs for device status and warnings
- High electromagnetic compatibility and vibration/shock resistance
- Long MTBF and MTTFD greater than 100 years
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical connections to ensure compliance with safety standards and optimal sensor performance.
Applications
- Security: Perimeter and area monitoring
- Outdoor and Indoor environments requiring reliable detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with typical 8 W operation and efficient heating system
- Durable IP67 housing reduces need for frequent replacements
- Long service life with MTBF over 100 years minimizes electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LMS131-10100 Security Laser Scanner is available for immediate purchase, ideal for security applications in both indoor and outdoor environments.
