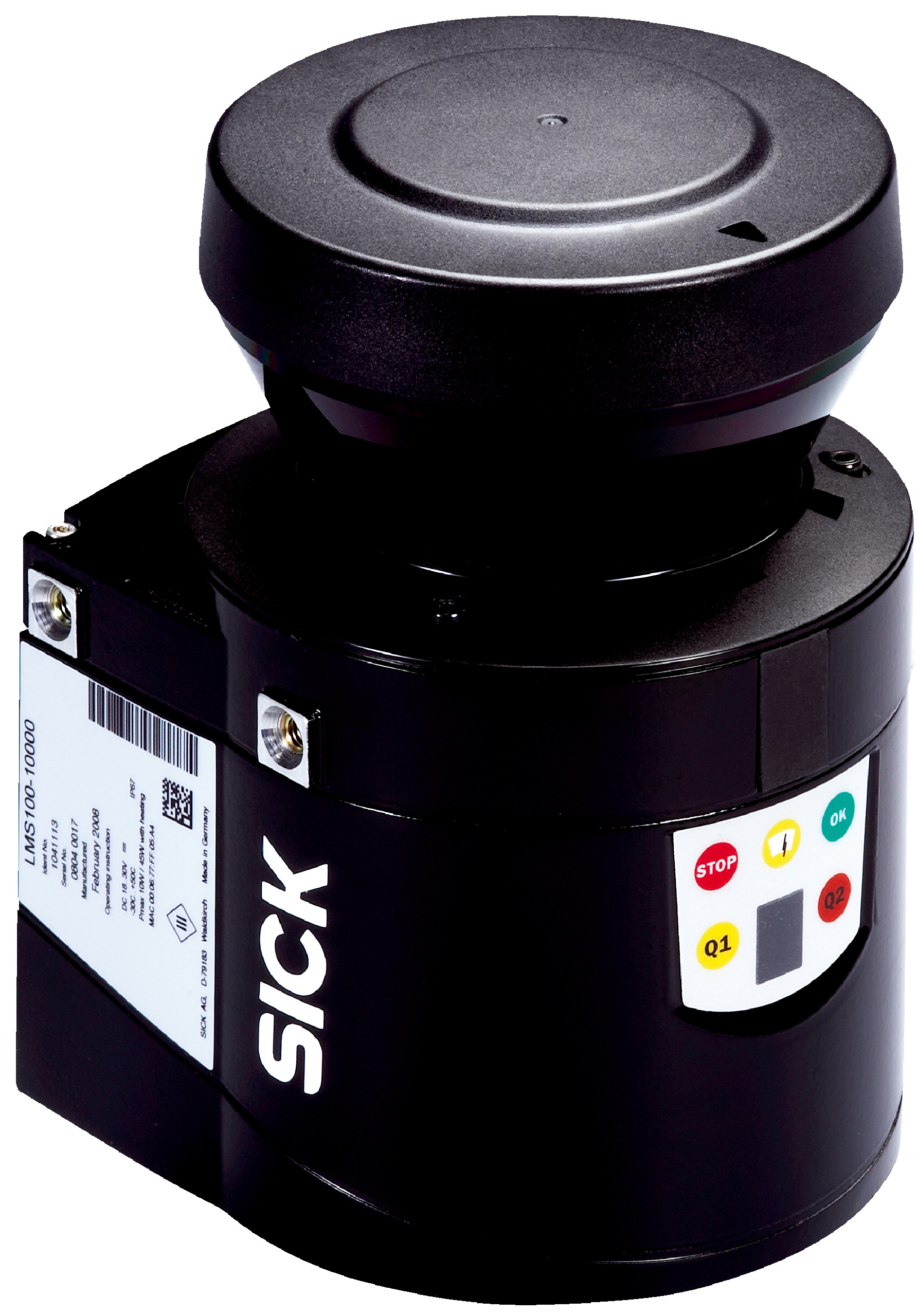

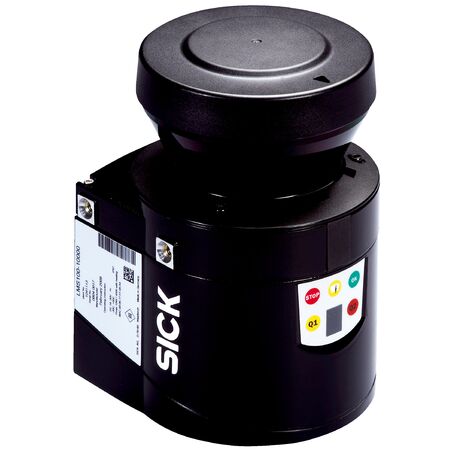

Security Laser Scanner LMS132-10100 | Infrared Light Source | IP67 Rated | 270° Aperture Angle | by SICK
The Security Laser Scanner LMS132-10100 is designed for versatile security applications, featuring an infrared light source and a 270° aperture angle for comprehensive coverage. With an IP67 rating, it ensures durability in both indoor and outdoor environments, making it ideal for safeguarding properties. Its fog correction capability and multiple scanning frequencies enhance reliability, ensuring optimal performance in various conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Security Laser Scanner LMS132-10100 | Infrared Light Source | IP67 Rated | 270° Aperture Angle | by SICK
Brand: SICK
SKU: 1051402
Alternatively Known As: Security Laser Scanner, SICK LMS132, Infrared Laser Scanner, Outdoor Security Scanner
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 270° horizontal
- Horizontal angular resolution: 0.25° or 0.5°
- Scanning frequency: 25 Hz or 50 Hz
- Working range: 0.5 m to 20 m
- Scanning range at 10% remission factor: 18 m
- Scanning range at 90% remission factor: 20 m
- Amount of evaluated echoes: 2
- Fog correction: Yes
- Connection type: 1 x M12 round connector
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 8 W, heating typical 35 W
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Detectable object shape: Almost any
- Systematic error: ± 30 mm
- Statistical error: 12 mm
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Data transmission rate: 9.6 kBaud to 115.2 kBaud
- Electromagnetic compatibility: EN 61000-6-2:2005 / EN 61000-6-3:2007+A1:2011
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Ambient operating temperature: –30 °C to +50 °C
- Storage temperature: –30 °C to +70 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 162mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source (905 nm)
- Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- 270° aperture angle with 0.25° horizontal resolution
- Scanning frequency options: 25 Hz, 50 Hz
- Heating function for operation in cold environments
- Working range from 0.5 m to 20 m
- Fog correction capability
- IP67 rated enclosure for dust and water protection
- Multiple interfaces including Ethernet (TCP/IP), Serial (RS-232), CAN
- Digital inputs and outputs with relay and digital options
- 7-segment display with LEDs for device status and warnings
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical connections to ensure compliance with safety standards.
Applications
- Security
- Outdoor
- Indoor
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with typical 8 W operation and heating at 35 W
- Durable IP67 housing reduces need for frequent replacements
- Long MTBF (>100 years) minimizes waste and resource use
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK LMS132-10100 Security Laser Scanner is available for immediate purchase, ideal for security applications in both indoor and outdoor environments.
