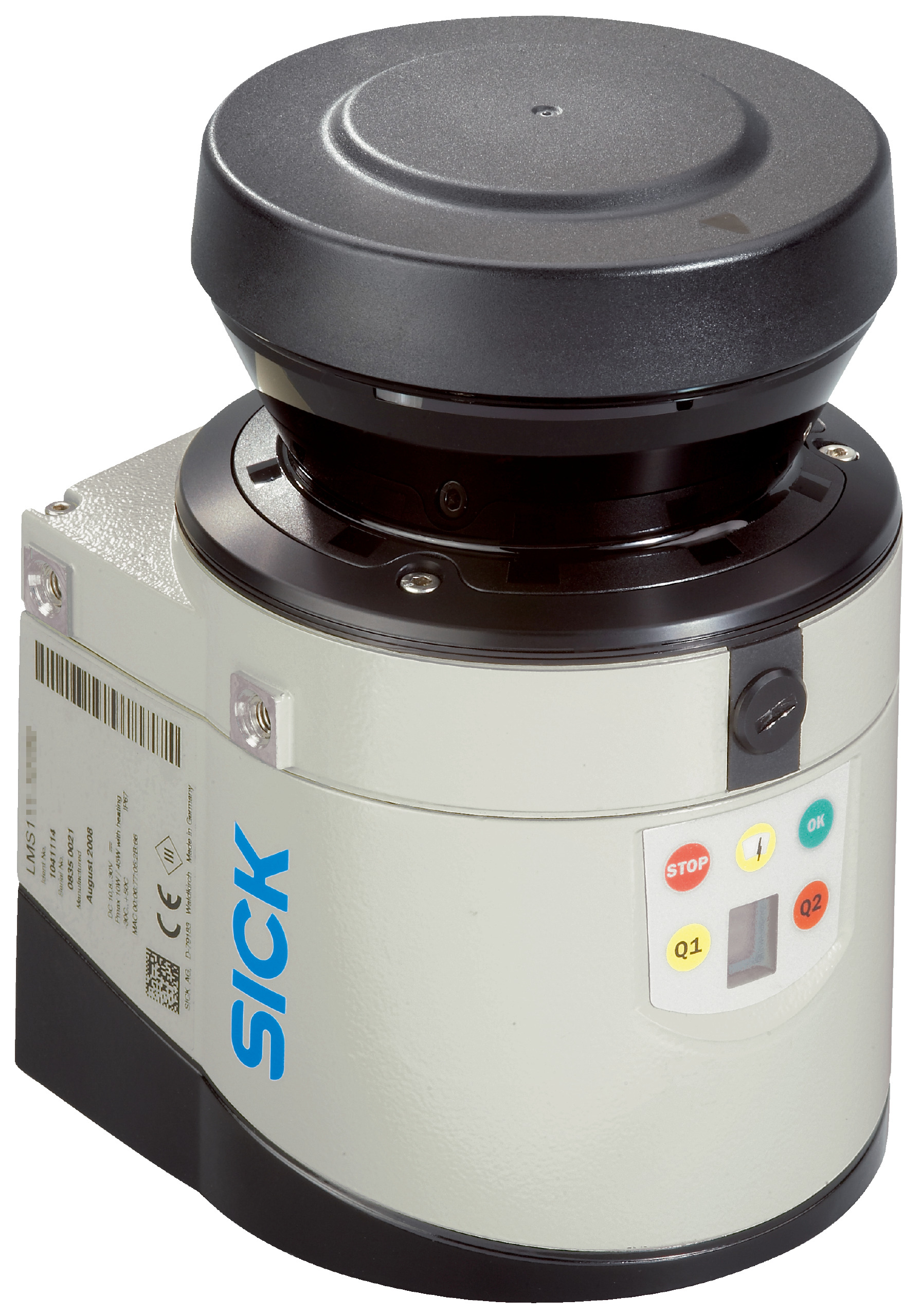

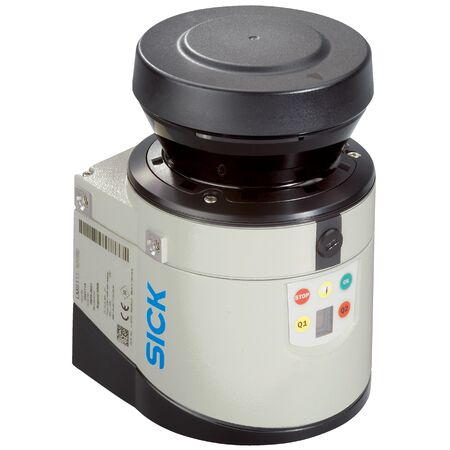

Security Laser Scanner LMS141-15100 | Infrared Light Source | IP67 Rated | 270° Aperture Angle | by SICK
The LMS141-15100 Security Laser Scanner is designed for perimeter and area surveillance, featuring an infrared light source and a wide 270° horizontal aperture angle. With a working range of 0.5 m to 40 m and IP67 enclosure for dust and water protection, it's perfect for both indoor and outdoor industrial safety monitoring, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Infrared (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 270° horizontal
- Angular resolution: 0.25° and 0.5° options
- Scanning frequency: 25 Hz, 50 Hz
- Working range: 0.5 m to 40 m
- Scanning range at 10% remission: 30 m
- Scanning range at 90% remission: 40 m
- Amount of evaluated echoes: 2
- Fog correction: Yes
- Connection type: 1 x M12 round connector
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: Typical 8 W, heating typical 35 W
- Enclosure rating: IP67 (EN 60529)
- Protection class: III (EN 61010-1:2010-10)
- Response time: ≥ 20 ms
- Systematic error: ± 30 mm
- Statistical error: Typ. 12 mm (0.5 m to 10 m), 20 mm (10 m to 20 m), 35 mm (20 m to 40 m)
- Number of field sets: 10
- Simultaneous evaluation cases: 10
- Ethernet: TCP/IP, 10/100 MBit/s
- Serial: RS-232, 9.6 kBaud to 115.2 kBaud
- CAN interface: Yes
- Digital inputs: 4
- Digital outputs: 3 (2 relay, 1 digital)
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 162mm x 105mm x 102mm
- Weight: 1.1 kg
Key Features
- Infrared light source (905 nm) with laser class 1 safety
- Wide horizontal aperture angle of 270° with 0.25° angular resolution
- Scanning frequency options of 25 Hz and 50 Hz
- Working range from 0.5 m up to 40 m with fog correction
- IP67 rated enclosure for dust and water protection
- Integrated heating for operation in cold environments
- Multiple interfaces including Ethernet TCP/IP, RS-232, and CAN
- Digital inputs and outputs with relay and digital options
- 7-segment display with LEDs for status and warnings
- High electromagnetic compatibility and vibration/shock resistance
- Long mean time between failures (MTBF) greater than 100 years
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with laser safety and electrical standards to ensure compliance and optimal performance.
Applications
- Security: Perimeter and area surveillance
- Outdoor: Harsh environmental conditions
- Indoor: Industrial and commercial safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with typical 8 W operation and efficient heating system
- Durable IP67 housing reduces need for frequent replacements
- Supports long operational life with MTBF over 100 years, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK LMS141-15100 Security Prime Laser Scanner is available for immediate purchase, ideal for security and industrial safety applications in both indoor and outdoor environments.
