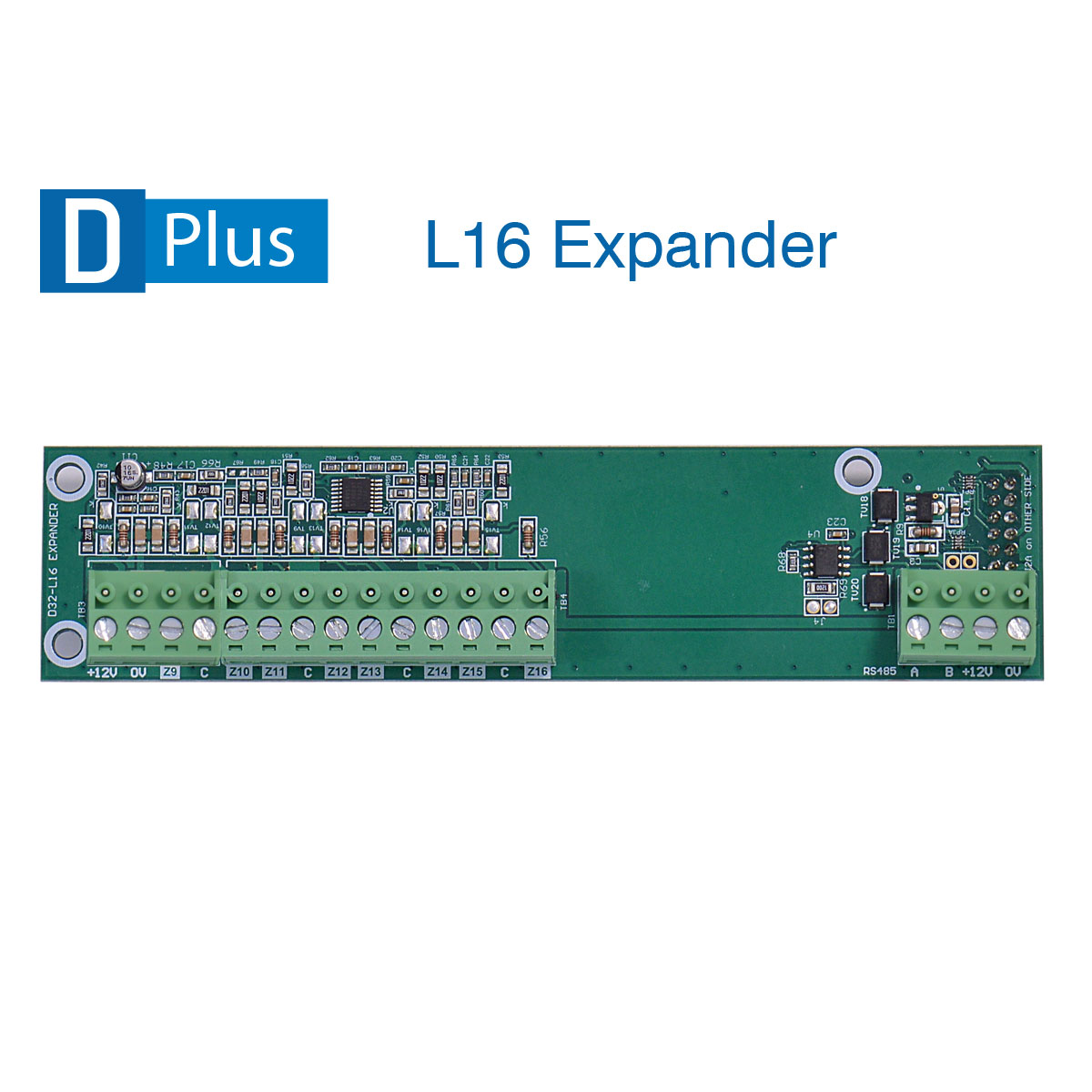

Security Zone Expander 9-16 Zones Hardwired Ness

BRAND: Ness
SKU: 106-982
$75.60 List price: $100.80
+ −
30 Days Return Electricians Unlock Trade Access
Ness security zone expander features 9-16 zones of hardwired expansion. Ideal for expanding alarm systems.

Alternatively Known As: Ness 106-982 L16 Expander, Ness Security Zone Expander, Ness DPlus 16-Zone Expander

Technical Specifications
  • Model: L16 local zone expander
  • Part Number: 106-982
  • Zone Capacity: Hardwired zones 9–16
  • System Compatibility: Ness DPlus alarm control panel
  • Expansion: Supports further expansion using an R16 remote expander
  • Connection Type: Plug-in local expansion module
  • Manufacturing: Made in Australia
  • Dimensions (H x L x W): 100mm x 150mm x 200mm
  • Weight: 1 kg
Key Features
  • Adds eight hardwired zones to the DPlus base panel, providing zones 9–16
  • Supports expansion to additional hardwired zones using the DPlus R16 remote expander
  • Designed for security alarm systems in residential and commercial applications
  • Compact plug-in module for installation on the DPlus main board
  • Connects directly to the DPlus expansion socket
Professional Installation Requirements
  • Installation, wiring and commissioning should be performed by a suitably qualified security alarm installer in accordance with the DPlus installation instructions and AS/NZS 2201.1:2007.
Applications
  • Expanding Ness DPlus intrusion alarm systems
  • Adding hardwired detectors, contacts and other monitored devices
  • Residential security alarm installations
  • Commercial security alarm installations
Standards & Compliance
  • Applicable installation standard: AS/NZS 2201.1:2007, Intruder alarm systems — Client’s premises — Design, installation, commissioning and maintenance
Environmental Benefits
  • Modular expansion allows an existing DPlus control panel to be upgraded without replacing the complete alarm system
  • Durable electronic construction can support longer system service life and reduce replacement waste
Warranty Information

Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms.

Available Now

Available through Ness and authorised Australian security equipment distributors.
