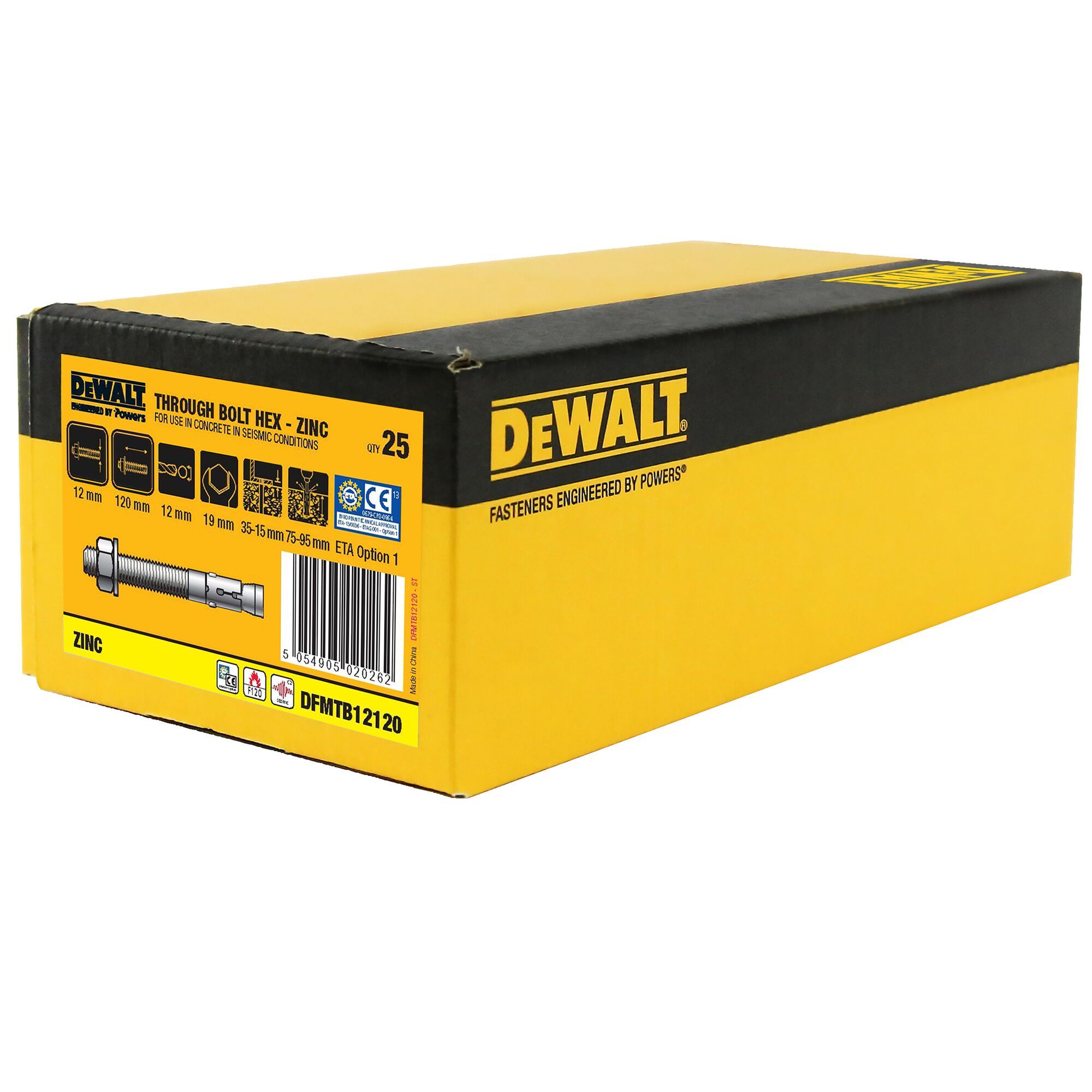

![THROUGH BOLT, PTB-ETA1-PRO SEISMIC, HEX, M12 x120mm [25]](https://d35gtgjy55l0bn.cloudfront.net/images/detailed/732/DFMTB12120_P1.jpg?t=1771246560 "THROUGH BOLT, PTB-ETA1-PRO SEISMIC, HEX, M12 x120mm [25]")
Seismic Through Bolt M12 x 120mm | Hex Head Design | ETA Option 1 Approved | Corrosion Resistant | @Pack of 25 | by Repelec
The Seismic Through Bolt M12 x 120mm is engineered for structural anchoring in both seismic and non-seismic zones. With a hex head design for easy installation and ETA Option 1 approval for cracked and non-cracked concrete, this bolt ensures high load capacity and reliable performance. Ideal for securing heavy machinery and racking systems, it’s a must-have for commercial and industrial construction projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Seismic Through Bolt M12 x 120mm | Hex Head Design | ETA Option 1 Approved | Corrosion Resistant | @Pack of 25 | by Repelec
Brand: Repelec
SKU: DEWDFMTB12120
Alternatively Known As: Seismic Through Bolt, M12 Anchor Bolt, ETA1-PRO Throughbolt, Hex Head Concrete Anchor, Heavy Duty Expansion Bolt
Technical Specifications
- Type: Through Bolt Anchor
- Model: PTB-ETA1-PRO Seismic
- Head Type: Hex
- Diameter: M12
- Length: 120mm
- Material: Steel, zinc-plated
- ETA Option 1 approved for cracked and non-cracked concrete
- Seismic rated (C1 & C2 performance)
- Installation torque: 60 Nm
- Drill hole diameter: 12mm
- Minimum embedment depth: 70mm
- Dimensions (H x L x W): 12mm x 120mm x 12mm
- Weight: 0.25 kg
Key Features
- Seismic rated through bolt anchor for high safety requirements
- ETA Option 1 approved for cracked and non-cracked concrete
- Hex head design for easy installation
- High load capacity and reliable performance
- Corrosion resistant zinc-plated finish
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct embedment depth and torque for seismic compliance.
Applications
- Structural anchoring in concrete for seismic and non-seismic zones
- Fixing steel structures, handrails, and safety barriers
- Securing heavy machinery and racking systems
- Commercial and industrial construction projects
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (for seismic and structural anchoring applications)
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Corrosion resistance extends product lifespan, minimizing waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Repelec PTB-ETA1-PRO Seismic Through Bolt M12 x 120mm Hex is available for immediate purchase. Ideal for structural anchoring in seismic and heavy-duty construction applications.
