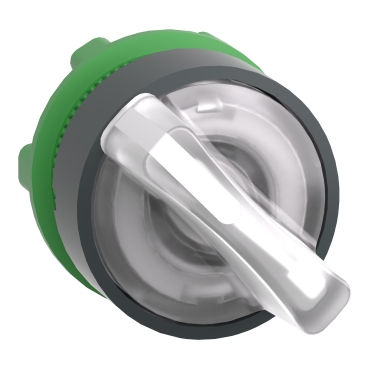

Selector Illuminated Pushbutton | 22mm Diameter | Green LED Illumination | IP66 Rated | @Pack of 1 | by Clipsal
The Selector Illuminated Pushbutton is a 22mm diameter switch featuring a vibrant green LED for clear status indication. Designed for industrial control panels and automation systems, it offers a robust plastic bezel and IP66 rating for dust and water protection. With easy installation via screw clamp terminals, this pushbutton is perfect for machinery operation stations and electrical switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Selector Illuminated Pushbutton | 22mm Diameter | Green LED Illumination | IP66 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHZB5AK1213
Alternatively Known As: Selector Switch, Illuminated Selector Switch, 22mm Selector Pushbutton, Clipsal Selector Switch, Green LED Selector Switch
Technical Specifications
- Type: Selector Illuminated Pushbutton
- Product code: SCHZB5AK1213
- Diameter: 22mm
- Positions: 2 (maintained)
- Illumination: Green LED
- Bezel material: Plastic
- Terminal type: Screw clamp
- Rated voltage: 24V AC/DC (LED)
- IP rating: IP66
- Dimensions (H x L x W): 50mm x 50mm x 30mm
- Weight: 0.12 kg
Key Features
- 22mm diameter selector switch
- Illuminated with green LED for clear status indication
- 2-position maintained operation
- Robust plastic bezel for durability
- Easy installation with screw clamp terminals
- IP66 rated for protection against dust and water
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical safety standards.
Applications
- Industrial control panels
- Machinery operation stations
- Automation systems
- Manufacturing equipment
- Electrical switchboards
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- LED illumination reduces energy consumption compared to traditional bulbs.
- Long-life LED minimizes maintenance and waste.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SCHZB5AK1213 Selector Illuminated Pushbutton is available for immediate purchase. Ideal for industrial control panels, automation systems, and machinery operation stations.
