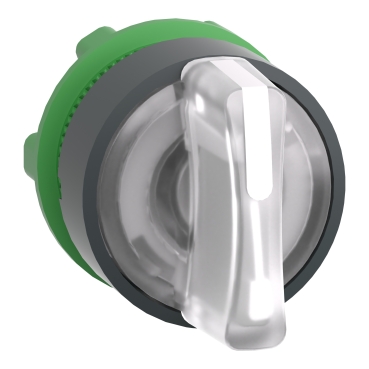

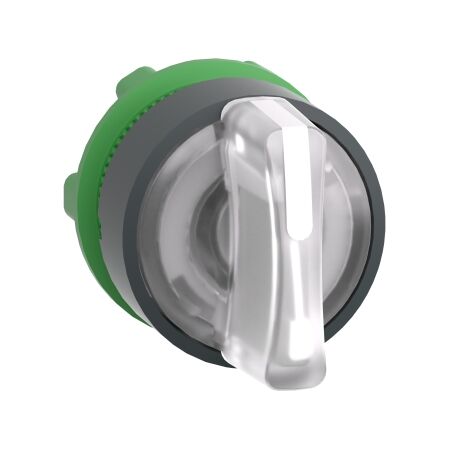

Selector Illuminated Pushbutton | 22mm Diameter | LED Illumination | 3-Position Operation | @Pack of 1 | by Clipsal
The Selector Illuminated Pushbutton is a 22mm diameter switch designed for industrial control panels and automation systems. Featuring LED illumination for clear status indication and a robust 3-position maintained operation, this pushbutton is built for durability in demanding environments. Ideal for machinery operation stations and electrical switchboards, it ensures reliable performance and easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Selector Illuminated Pushbutton | 22mm Diameter | LED Illumination | 3-Position Operation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHZB5AK1513
Alternatively Known As: Selector switch, Illuminated selector switch, 3-position selector, Industrial selector pushbutton, Clipsal selector switch
Technical Specifications
- Type: Selector Illuminated Pushbutton
- Model: SCHZB5AK1513
- Diameter: 22mm
- Operation: 3-position maintained
- Illumination: LED
- Contact configuration: 1NO + 1NC (typical)
- Rated voltage: 24V AC/DC (illumination)
- Panel mounting: Standard 22mm cutout
- Material: High-impact plastic and metal
- Dimensions (H x L x W): 50mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- 22mm diameter selector switch
- Illuminated pushbutton for clear status indication
- 3-position maintained operation
- Robust construction for industrial environments
- Easy installation with standard panel cutout
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with Australian electrical standards and safe operation.
Applications
- Industrial control panels
- Machinery operation stations
- Automation systems
- Manufacturing equipment
- Electrical switchboards
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long-life LED illumination reduces maintenance and energy consumption.
- Durable design minimizes replacement frequency and waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHZB5AK1513 Selector Illuminated Pushbutton is available for immediate purchase. Ideal for industrial control panels and automation systems.
