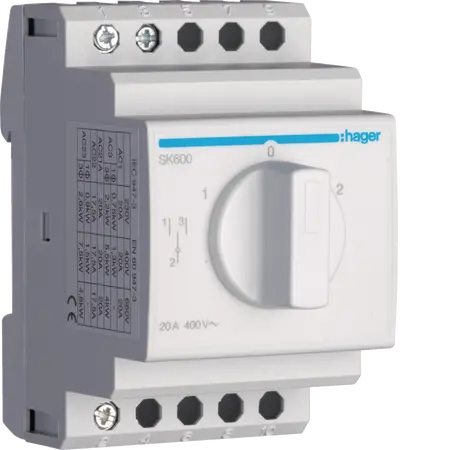

Selector Switch Non-Spring Return | 20A | IP20 | 660V AC by Hager
Selector switch with 20A rated current and 660V AC operational voltage—ideal for industrial control panels and commercial electrical systems. Built for safety and reliability, with IP20 protection and RoHS compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Selector switch non spring ret
Brand: Hager
SKU: SK600
Alternatively Known As: Selector Switch, Load Break Switch, Push Button Switch
Technical Specifications
- Number of poles: 1
- Rated current: 20 A
- Rated conditional short-circuit current: 8 kA
- Rated insulation voltage: 690 V
- Operating temperature: -10 to 40 °C
- Storage/transport temperature: -40 to 80 °C
- Cross-section flexible conductor: 1.5 - 10 mm²
- Cross-section rigid conductor: 1 - 6 mm²
- Total power loss under IN: 0.70 W
- Dimensions (H x L x W): 85mm x 64mm x 53mm
- Weight: 0.5 kg
Key Features
- Single pole design with a rated current of 20 A.
- Rated operational voltage of 660 V AC.
- Ingress Protection (IP) class IP20.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels and machinery
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager Selector Switch Non-Spring Return is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
