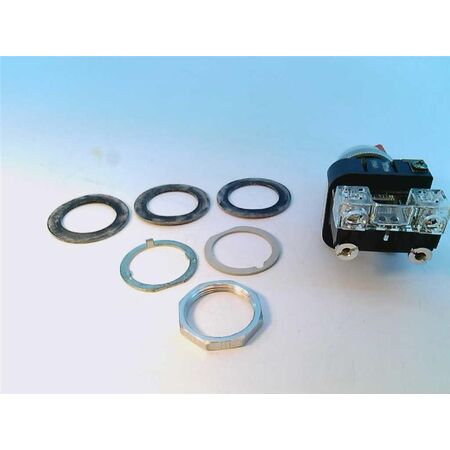

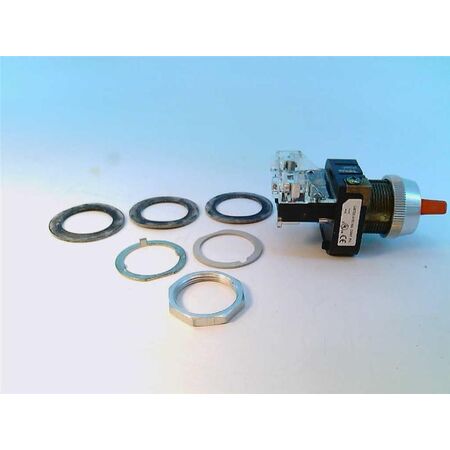

Selector Switch 30.5mm Metal | Type 4/13 Enclosure | 24V AC/DC | by Allen-Bradley
The Selector Switch 30.5mm Metal is designed for industrial control applications, featuring a robust Type 4/13 enclosure for dust and water protection. With a 2-position maintained cam and terminal guards for safety, this switch operates at 24V AC/DC, making it ideal for machinery operation and automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Size: 30.5 mm
- Material: Metal
- Enclosure rating: Type 4/13
- Terminal guards included
- Voltage: 24V AC/DC
- Positions: 2-position maintained cam
- Knob: Standard maintained
- Contact configuration: First level - 1 NO, 1 NC; Second level - no contacts
- Dimensions (H x L x W): 35mm x 50mm x 35mm
- Weight: 0.2 kg
Key Features
- 30.5 mm metal selector switch
- Type 4/13 enclosure rating for protection against dust and water
- Guards on terminals for safety
- 24V AC/DC operation
- 2-position maintained cam with standard knob
- First level: 1 Normally Open (NO) and 1 Normally Closed (NC) contact
- Second level: no contacts in this position
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation control
- Automation systems requiring selector switches
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces need for frequent replacements, minimizing waste
- Low voltage operation (24V AC/DC) reduces energy consumption
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 800TC24HA2KB6AX Selector Switch is available for immediate purchase, ideal for industrial and automation control applications.
