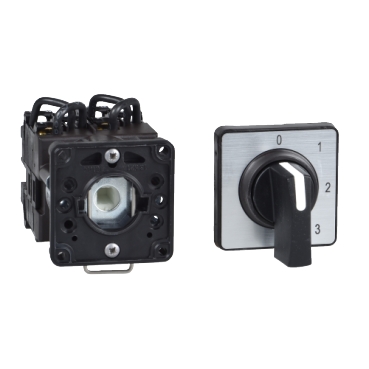

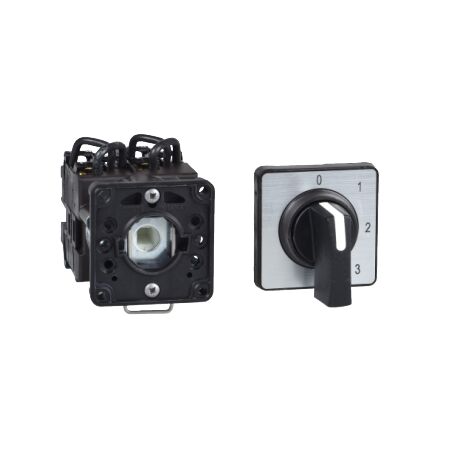

Selector Switch 3W 1 Pole | 3-Position Configuration | IP65 Rated | Durable Construction | @Pack of 1 | by Clipsal
The Selector Switch 3W 1 Pole is designed for industrial control panels and automation systems, featuring a robust 3-position configuration and IP65 rating for reliable operation. Built with high-grade materials, this switch ensures easy installation and clear position indication, making it ideal for machinery operation and switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Selector Switch 3W 1 Pole | 3-Position Configuration | IP65 Rated | Durable Construction | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHK2B001UCH
Alternatively Known As: 3-position selector switch, Clipsal rotary switch, industrial selector switch, SCHK2B001UCH switch
Technical Specifications
- Type: Selector switch
- Number of positions: 3 (3W)
- Number of poles: 1
- Mounting: Panel mount
- Contact rating: 10A 600V AC
- Front bezel: 22mm diameter
- Material: High-grade plastic and metal components
- IP Rating: IP65 (front)
- Dimensions (H x L x W): 50mm x 30mm x 30mm
- Weight: 0.12 kg
Key Features
- 3-position selector switch
- 1 pole configuration
- Robust and durable construction
- Easy installation with standard panel cutout
- Clear position indication
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation
- Switchboards
- Automation systems
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
Environmental Benefits
- Long-lasting design reduces replacement frequency and waste.
- Reliable operation minimizes downtime and energy loss in control systems.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Selector Switch 3W 1 Pole SCHK2B001UCH is available for immediate purchase. Ideal for industrial control panels, machinery, and automation systems.
