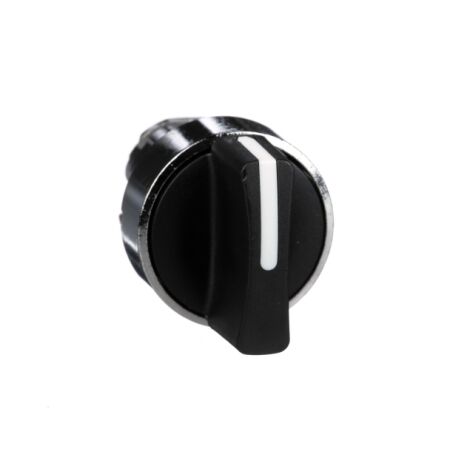

Selector Switch Head 3-Position | 22mm Metal | IP67 Rated by Clipsal
Selector switch head with 3-position stay put design and 22mm mounting—ideal for industrial control panels. Built for durability with IP67 rating and 1,000,000 mechanical cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony XB4, Selector switch head, metal, black, 22mm, 3 positions, stay put
Brand: Clipsal
SKU: ZB4BD3
Alternatively Known As: Selector Switch Head, XB4 Selector Switch, 3 Position Switch
Technical Specifications
- Bezel material: Chromium plated metal
- Mounting diameter: 22 mm
- Shape of signaling unit head: Round
- Type of operator: Stay put
- Operator profile: Black standard handle
- Resistance to high pressure washer: 7000000 Pa at 55 °C
- Overvoltage category: Class I conforming to IEC 60536
- NEMA degree of protection: NEMA 13, NEMA 4X
- Vibration resistance: 5 gn (f= 2-500 Hz)
- Shock resistance: 30 gn (duration = 18 ms)
- Dimensions (H x L x W): 29mm x 44mm x 22mm
- Weight: 0.04 kg
Key Features
- 3-position stay put selector switch head
- IP67 rated for protection against dust and water
- Mechanical durability of 1,000,000 cycles
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery, and equipment
Standards & Compliance
- Complies with IEC 60947-5-5, IEC 60947-1, UL 508, CSA C22.2 No 14
Environmental Benefits
- Green Premium product status
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Selector Switch Head is available now for immediate purchase. Ideal for industrial control applications.
