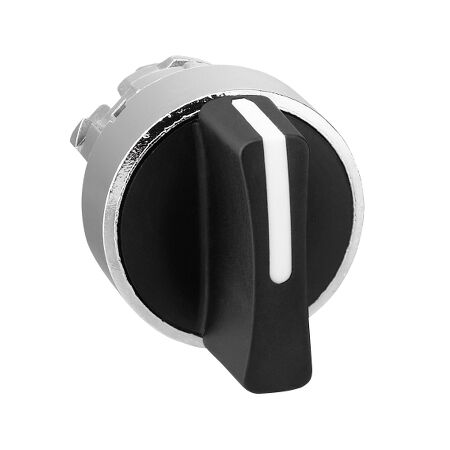

Selector Switch Head 3-Position | 22mm Spring Return | IP67 Rated by Clipsal
Selector switch head with 3 positions and spring return, ideal for industrial control panels. Built for durability with IP67 rating and chromium-plated metal bezel, ensuring long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony XB4, Selector switch head, metal, black, 22mm, 3 positions, spring return from left to center
Brand: Clipsal
SKU: ZB4BD7
Alternatively Known As: Selector Switch, XB4 Selector Switch, Harmony Selector Switch
Technical Specifications
- Design: Harmony XB4
- Product type: Head for selector switch
- Bezel material: Chromium plated metal
- Mounting diameter: 22.5 mm
- Type of operator: Left to center spring return
- Operator profile: Black standard handle
- Vibration resistance: 5 gn (f= 2-500 Hz)
- Shock resistance: 30 gn (duration = 18 ms)
- Overvoltage category: Class I conforming to IEC 60536
- Dimensions (H x L x W): 29mm x 44mm x 29mm
- Weight: 0.04 kg
Key Features
- 3-position selector switch with spring return from left to center.
- IP67 rated for protection against dust and water.
- Mechanical durability of 1,000,000 cycles.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery, and equipment
Standards & Compliance
- Complies with IEC 60947-1 and other relevant standards.
Environmental Benefits
- Green Premium product status.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Selector Switch Head is available now for immediate purchase. Ideal for industrial control applications.
