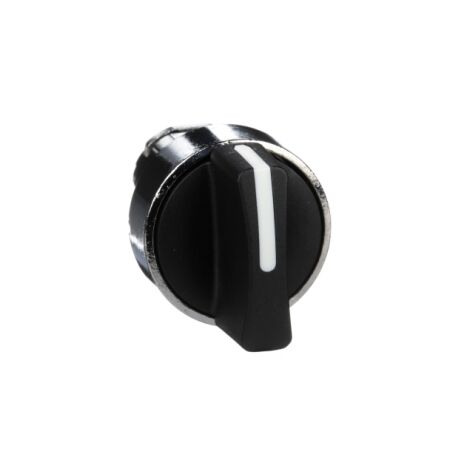

Selector Switch Head 3-Position | Spring Return | IP67 Rated | 22mm by Clipsal
Selector switch head with 3 positions and spring return to center—ideal for industrial control panels and machinery. Built for durability with IP67 rating and 1,000,000 cycle mechanical endurance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony XB4, Selector switch head, metal, black, 22mm, 3 positions, spring return to center
Brand: Clipsal
SKU: ZB4BD5
Alternatively Known As: Selector Switch, XB4 Selector Switch, Harmony Selector Switch
Technical Specifications
- Bezel material: Chromium plated metal
- Mounting diameter: 22.5 mm
- Type of operator: To center spring return
- Operator profile: Black standard handle
- Resistance to high pressure washer: 7,000,000 Pa at 55 °C
- Overvoltage category: Class I conforming to IEC 60536
- NEMA degree of protection: NEMA 13, NEMA 4X
- Vibration resistance: 5 gn (f= 2-500 Hz)
- Shock resistance: 30 gn (duration = 18 ms)
- Dimensions (H x L x W): 29mm x 44mm x 29mm
- Weight: 0.04 kg
Key Features
- 3-position selector switch with spring return to center.
- IP67 rated for protection against dust and water.
- Mechanical durability of 1,000,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery, and equipment.
Standards & Compliance
- Complies with IEC 60947-5-5 and other relevant standards.
Environmental Benefits
- Green Premium product status.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Selector Switch Head is available now for immediate purchase. Ideal for industrial control applications.
