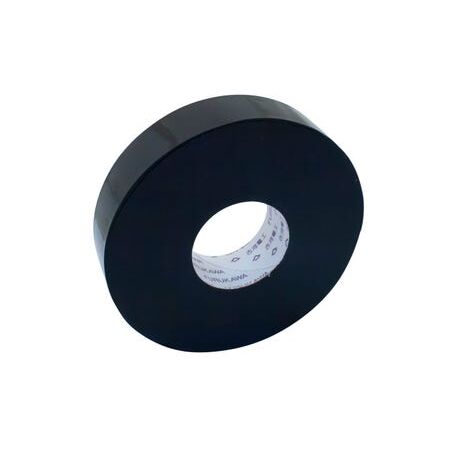

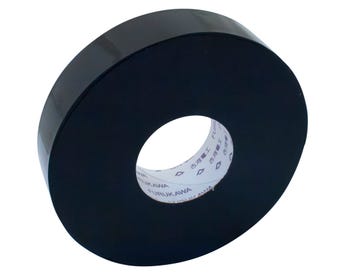

Self Amalgamating Tape 20mm x 10m | High Voltage Insulation | Waterproof | Black by Cabac
Self amalgamating tape with high voltage insulation and waterproof properties—ideal for cable repair and electrical insulation. Built for rugged environments, with superior mechanical strength and ageing resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Self Amalgamating Tape 20mm X 10m Black
Brand: Cabac
SKU: SAT2
Alternatively Known As: Electrical Insulating Tape, High Voltage Insulation Tape, Rubber Insulation Tape, Cable Repair Tape, Self-Fusing Tape
Technical Specifications
- Material: Synthetic rubber and resin with polyethylene separator
- Dimensions: 20mm width x 10m length
- Thickness: 0.5mm
- Tensile Strength: 4 N/mm²
- Elongation: 450%
- Adhesion Strength: 30 N/20mm width
- Breakdown Voltage: 30 kV/mm
- Operating Temperature: -30°C to 70°C continuous, short-term exposure up to 100°C
- Waterproof and weather resistance: Excellent
- Ozone resistance: Good
- Dimensions (H x L x W): n/a mm x 10000mm x 20mm
- Weight: 0.1 kg
Key Features
- High mechanical strength for reliable performance
- Ideal for rugged and demanding environments
- Excellent waterproofing when combined with SAT1
- Superior electrical insulation and ageing resistance
- Conforms to UL, NEMA, IEC, and JIS standards
Professional Installation Requirements
- Professional installation is recommended to ensure proper surface preparation and correct application with 50% overlap and gentle stretching for optimal adhesion and performance.
Applications
- Insulation for joints and terminations of rubber and plastic cables
- Repair of damaged insulation on low- to high-voltage cables
- Primary electrical insulation for various cable splicing and jointing applications
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable and long-lasting reducing the need for frequent replacements
- Waterproof and weather-resistant properties help protect cables and reduce waste from damage
Warranty Information
Warranty information not specified; typically covered by manufacturer against defects.
Available Now
The Cabac Self Amalgamating Tape 20mm x 10m Black is available now for immediate purchase. Ideal for electrical insulation and cable repair in industrial, commercial, and residential applications.
