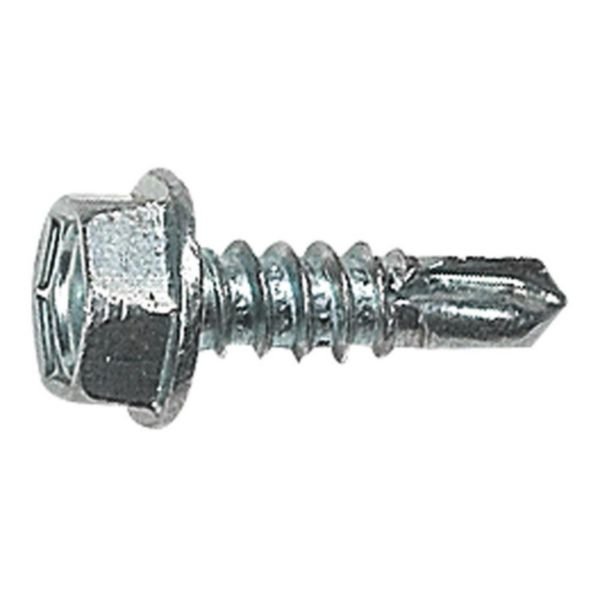

Self-Drilling Screw 4.8mm x 16mm | Hexagon Head | Zinc Plated | @Each of 1 | by Legrand
The Self-Drilling Screw 4.8 mm x 16 mm is designed for efficient installation in metal and sheet materials. With a hexagon head for secure fastening and a galvanic zinc plated surface for corrosion resistance, this screw is ideal for industrial enclosures and electrical panel construction. Its thread-forming design eliminates the need for pre-drilling, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Self-Drilling Screw 4.8mm x 16mm | Hexagon Head | Zinc Plated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 034745
Alternatively Known As: Self-drilling screw, tapping screw, hex head screw, zinc plated screw, metal fastening screw
Technical Specifications
- Material: Steel
- Surface Protection: Galvanic/electrolytic zinc plated
- Thread Size (metric): 4.1
- Thread Diameter: 4.8 mm
- Pitch Thread: 1.6 mm
- Length: 16 mm
- Thread Moulding: Thread-forming
- Self Boring: Yes
- Head Form: Hexagon
- Screwing System: Hexagon
- Hardened: No
- Dimensions (H x L x W): 16mm x 16mm x 4.8mm
- Weight: 0.1 kg
Key Features
- Self-drilling and tapping screw for efficient installation
- Hexagon head for secure screwing system
- Galvanic/electrolytic zinc plated surface for corrosion resistance
- Thread-forming design for strong hold without pre-drilling
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety compliance.
Applications
- Industrial enclosures assembly
- Electrical panel construction
- General fastening in metal and sheet materials
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Galvanic zinc plating extends product life reducing replacement frequency
- Efficient self-drilling reduces installation time and energy use
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand's warranty policy for details.
Available Now
Legrand Screw Head 4.8 mm x 16 self-drilling/tapping screw is available for immediate purchase, ideal for industrial enclosure and electrical panel assembly.
