Self-Drilling Window Construction Screw | Raised Countersunk Head | Zinc-Plated Steel | AW Drive | @Pack of 2500 | by Wurth

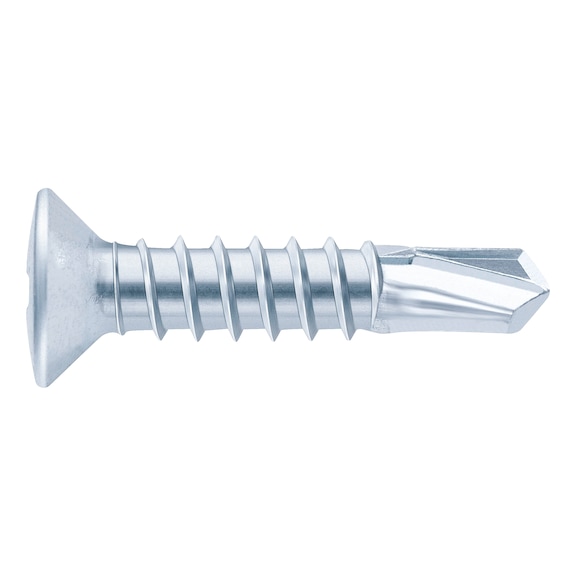

Self-drilling window construction screws with a raised countersunk head and AW drive are perfect for connecting plastic window profiles with metal reinforcement. Made from durable zinc-plated FEBOS®plus steel, these screws ensure optimal force transmission and are ideal for professional installation in various applications, including automatic systems and roller-sorted setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Self-Drilling Window Construction Screw | Raised Countersunk Head | Zinc-Plated Steel | AW Drive | @Pack of 2500 | by Wurth
Brand: Wurth
SKU: 208143932
Alternatively Known As: Self-drilling window screw, plastic window construction screw, raised countersunk head screw, AW drive screw, FEBOS plus screw

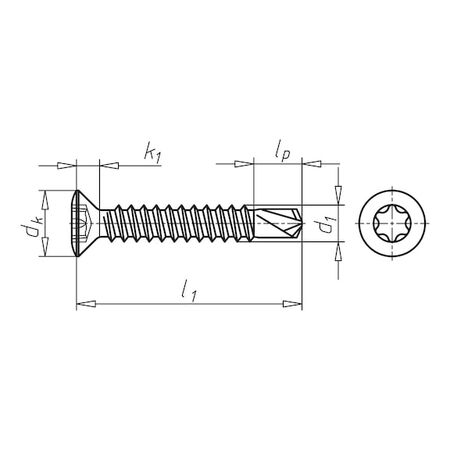

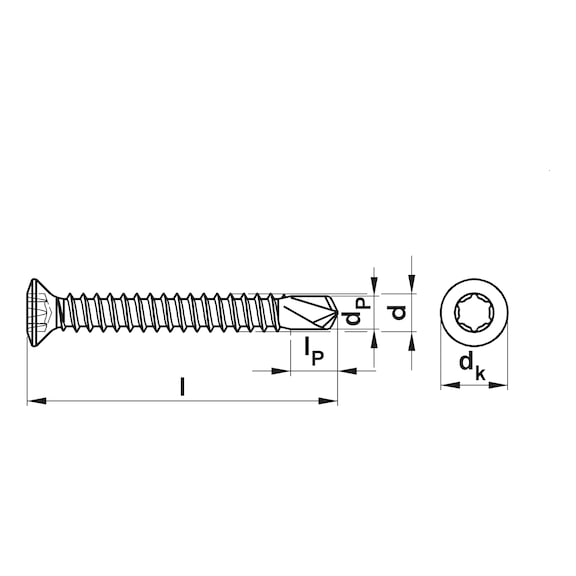

Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- Thread type x nominal diameter: ST3.9
- Length: 32 mm
- Head diameter: 7 mm
- Head height: 2.4 mm
- Drill tip length: 6 mm
- Drill tip diameter: 3.2 mm
- Internal drive: AW20
- Head type: Raised countersunk head
- Shape of tip: Drilling tip
- Thread design: Full thread
- Thread type: Self-tapping screw thread
- Dimensions (H x L x W): 2.4mm x 32mm x 7mm
- Weight: 0.05 kg
Key Features
- Self-drilling window construction screw
- Raised countersunk head with 7.0 mm diameter
- AW drive for optimum transmission of forces
- No ejection forces and good centring
- Fast location and full self-tapping screw thread
- Zinc-plated steel with blue passivation
- RoHS-compliant
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Connecting plastic window profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications
Standards & Compliance
- Complies with AS/NZS 4785 – Fasteners for timber and plastic window construction
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for plastic window construction and metal reinforcement fastening applications.
