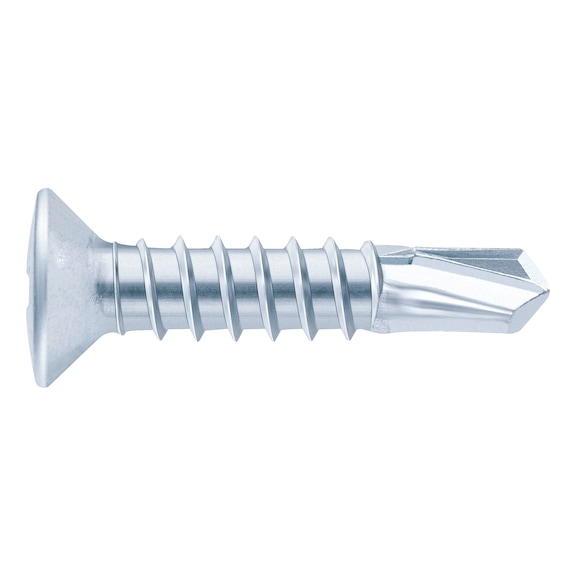

Self-Drilling Window Construction Screw | Raised Countersunk Head | Zinc-Plated & Blue Passivated | @Pack of 1000 | by Wurth
Self-drilling window construction screws with a raised countersunk head and AW drive are perfect for connecting plastic window profiles with metal reinforcement. Made from FEBOS®plus steel and featuring a zinc-plated, blue passivated surface, these screws ensure corrosion resistance and durability. Ideal for professional installation in window construction, they provide reliable fastening for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Self-Drilling Window Construction Screw | Raised Countersunk Head | Zinc-Plated & Blue Passivated | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 208143960
Alternatively Known As: Self-drilling window screw, plastic window construction screw, raised countersunk head screw, AW drive screw, FEBOS®plus steel screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- Thread type x nominal diameter: ST3.9
- Length: 60 mm
- Head diameter: 7 mm
- Head height: 2.4 mm
- Drill tip length: 6 mm
- Drill tip diameter: 3.2 mm
- Internal drive: AW20
- Head type: Raised countersunk head
- Shape of tip: Drilling tip
- Thread design: Full thread
- Thread type: Self-tapping screw thread
- Dimensions (H x L x W): 2.4mm x 60mm x 7mm
- Weight: 0.05 kg
Key Features
- Self-drilling window construction screw
- Raised countersunk head with 7.0 mm diameter
- AW drive for optimum transmission of forces
- No ejection forces and good centring for fast location
- Full thread self-tapping screw thread design
- Zinc plated and blue passivated surface for corrosion resistance
- RoHS-compliant
Professional Installation Requirements
- Installation by a professional or experienced technician is recommended to ensure proper fastening and structural integrity.
Applications
- Connecting plastic window profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications in window construction
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for plastic window construction and metal reinforcement fastening applications.
