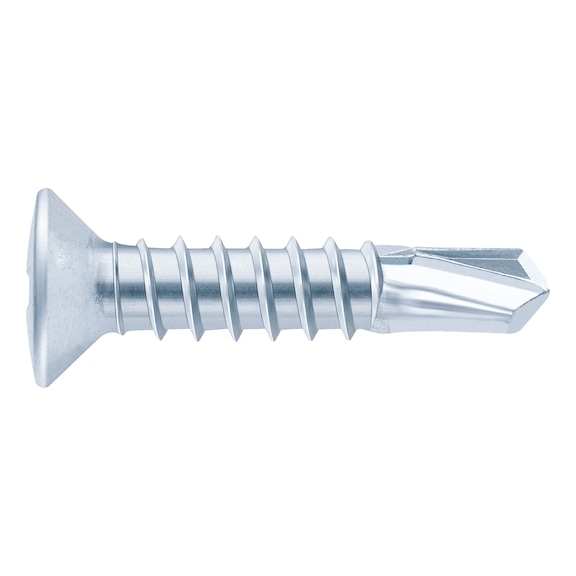

Self-Drilling Window Construction Screw | Raised Countersunk Head | Zinc-Plated Steel | PH Drive | @Pack of 2000 | by Wurth
Self-drilling window construction screws with a raised countersunk head are perfect for UPVC profiles and metal reinforcement. Made from durable zinc-plated steel, these screws feature a PH drive for efficient installation. Ideal for professional tradespeople, they ensure secure fastening in window construction and metal applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Self-Drilling Window Construction Screw | Raised Countersunk Head | Zinc-Plated Steel | PH Drive | @Pack of 2000 | by Wurth
Brand: Wurth
SKU: 207683938
Alternatively Known As: Self-drilling window screw, UPVC construction screw, Raised countersunk head screw, FEBOS plus screw, Zinc plated tapping screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Thread type x nominal diameter (d1): ST3.9
- Length (l1): 38 mm
- Head diameter (dk): 7 mm
- Head height (k1): 2.7 mm
- Drill tip length (lp): 6 mm
- Drill tip diameter (dp): 3.2 mm
- Internal drive: H2 (PH drive)
- Head type: Raised countersunk head
- Shape of tip: Drilling tip
- Thread design: Full thread
- Thread type: Self-tapping screw thread
- Dimensions (H x L x W): 2.7mm x 38mm x 7mm
- Weight: 0.05 kg
Key Features
- Self-drilling window construction screw
- Raised countersunk head design
- Tapping screw thread with full thread design
- Steel material with zinc plating and blue passivation
- PH (H2) internal drive
- Drilling tip shape for efficient penetration
Professional Installation Requirements
- Installation by trained professionals or experienced tradespeople is recommended to ensure proper fastening and structural integrity.
Applications
- Connecting UPVC profiles with metal reinforcement up to 2.5 mm
- Securing fittings on profiles with metal stiffening up to 2.5 mm
- Use in automatic systems and roller-sorted applications
- UPVC window construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Construction & Building)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for UPVC window construction and metal reinforcement fastening applications.
