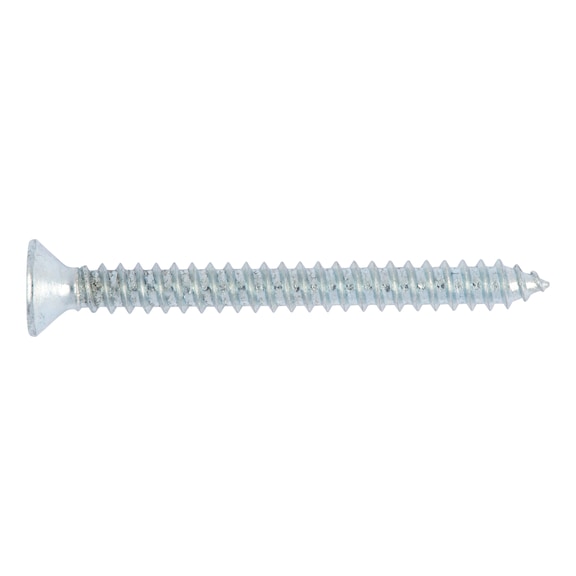

Self-Tapping Countersunk Head Screw | Zinc Plated Steel | 80-Degree Angle | Full Thread Design | by Wurth
The Self-Tapping Countersunk Head Screw is crafted from durable zinc plated steel, ensuring corrosion resistance and longevity. With a self-tapping full thread design and an 80-degree countersunk head, it provides a flush finish for secure fastening in various materials including metal, plastic, and wood. Ideal for construction and manufacturing applications, this screw is designed for reliable performance in any project.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Self-Tapping Countersunk Head Screw | Zinc Plated Steel | 80-Degree Angle | Full Thread Design | by Wurth
Brand: Wurth
SKU: 1162913
Alternatively Known As: Self-tapping screw, Zinc plated screw, Countersunk head screw, Thread rolling screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Form: C
- Nominal diameter (d1): 2.9 mm
- Length (l1): 13 mm
- Head diameter (dk): 5.5 mm
- Head height (k1): 1.7 mm
- Internal drive: H1
- Drive type: H
- Head type: Countersunk head 80 degree
- Thread type: Self-tapping screw thread
- Thread design: Full thread
- Shape of tip: C
- Dimensions (H x L x W): 1.7mm x 13mm x 5.5mm
- Weight: 0.1 kg
Key Features
- Made from durable steel with zinc plating for corrosion resistance
- Self-tapping full thread design for secure fastening
- Countersunk head with 80-degree angle for flush finish
- Internal H1 drive type for easy installation
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and safety.
Applications
- General fastening applications requiring self-tapping screws
- Suitable for metal, plastic, and wood materials
- Used in construction, manufacturing, and repair tasks
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Zinc Plated Steel Self-Tapping Countersunk Head Screw 2.9mm x 13mm is available for immediate purchase, ideal for fastening applications in construction and manufacturing.
