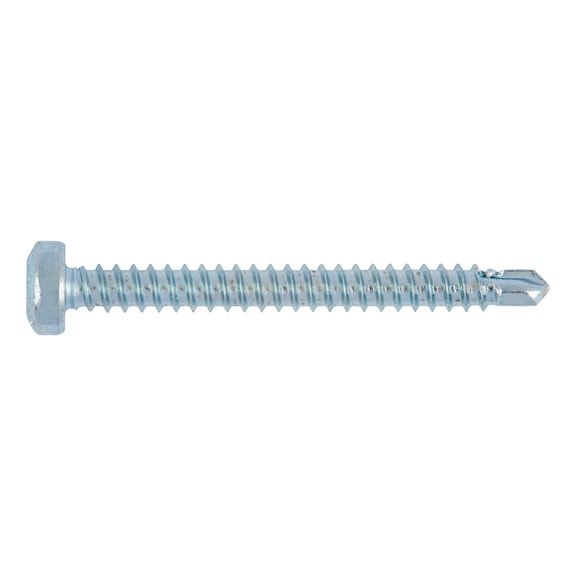

Self-Tapping Drill Screw | Steel Case-Hardened | Zinc Plated | AW20 Drive | by Wurth
The Self-Tapping Drill Screw is designed for fastening steel profiles on steel substructures up to 3 mm thickness. Made from steel with a galvanized blue passivert surface, it offers excellent corrosion resistance and reduces assembly time by at least 50% without the need for center-punching. Ideal for construction, manufacturing, and metal fabrication, this screw ensures optimal torque transmission for reliable fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Self-Tapping Drill Screw | Steel Case-Hardened | Zinc Plated | AW20 Drive | by Wurth
Brand: Wurth
SKU: 2063916
Alternatively Known As: Self-tapping drill screw, Steel drill tip screw, AW drive tapping screw, Zinc plated self-tapping screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated (galvanized blue passivert)
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: AW20 internal drive
- Thread type: Self-tapping screw thread
- Tip shape: Drilling tip
- Nominal diameter: 3.9 mm
- Length: 16 mm
- Head diameter: 7.5 mm
- Head height: 3.1 mm
- Drill tip length: 4 mm
- Screw-thread length with drill tip: 13.5 mm
- Minimum recommended substructure thickness: 1.5 mm
- Maximum material thickness to be drilled through (metal): 3.0 mm
- Minimum/maximum attachment thickness: 1.5-9.5 mm
- Recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 3.1mm x 16mm x 7.5mm
- Weight: 0.1 kg
Key Features
- Steel case-hardened with galvanized blue passivert surface for corrosion resistance
- Drill tip enables assembly time reduction by at least 50% without centre-punching
- AW drive provides optimal torque transmission for steel/steel applications
- Self-tapping screw thread with pan head and AW20 internal drive
- Suitable for component combinations tI/tII in accordance with approval ETA-10/0184
Professional Installation Requirements
- Installation by a qualified professional or experienced tradesperson recommended to ensure correct torque and fastening integrity.
Applications
- Fastening steel profiles on steel substructures up to 3 mm thickness
- Suitable for steel and aluminum substrates
- Use in construction, manufacturing, and metal fabrication
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life and reduces replacement frequency
Warranty Information
Wurth standard product warranty against manufacturing defects.
Available Now
The Wurth Steel Case-Hardened Self-Tapping Drill Tip Screw is available for immediate purchase, ideal for fastening steel profiles in construction and metal fabrication.
