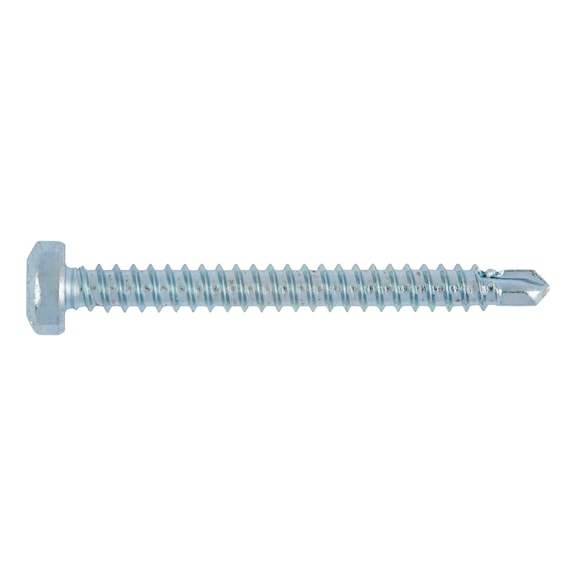

Self-Tapping Drill Screw | Steel Construction | Zinc Plated | AW Drive | by Wurth
The Self-Tapping Drill Screw is designed for efficient fastening in steel and aluminum applications. With a durable zinc plating and a unique AW drive, it reduces assembly time by at least 50% while ensuring optimal torque transmission. Ideal for construction and industrial tasks, this screw is perfect for fastening steel profiles on steel substructures up to 3 mm thickness.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Self-Tapping Drill Screw | Steel Construction | Zinc Plated | AW Drive | by Wurth
Brand: Wurth
SKU: 2063595
Alternatively Known As: Self-tapping drill screw, Steel self-drilling screw, AW drive screw, Zinc plated tapping screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: AW
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Underground: Steel, Aluminum
- Nominal diameter (d1): 3.5 mm
- Length (l1): 9.5 mm
- Head diameter (dk): 6.9 mm
- Head height (k1): 2.75 mm
- Drill tip length (lp): 3.2 mm
- Screw-thread length with drill tip: 7 mm
- Internal drive: AW10
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 2.5 mm
- Min./max. attachment thickness: 1.5-3.5 mm
- Min./max. recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 2.75mm x 9.5mm x 6.9mm
- Weight: 0.1 kg
Key Features
- Assembly time reduced by at least 50% using the drill tip allowing drilling without centre-punching, thread forming, and fastening
- Additional optimal torque transmission by the AW drive for steel/steel applications with diameters 4.2 mm, 4.8 mm, and 5.5 mm
- Suitable for component combinations tI/tII in accordance with approval ETA-10/0184
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct torque and fastening performance.
Applications
- Fastening steel profiles on steel substructures up to 3 mm thickness
- Suitable for steel and aluminum underground materials
- Ideal for construction and industrial fastening tasks requiring self-tapping screws
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Steel Case-Hardened Self-Tapping Screw with Drill Tip 3.5mm is available for immediate purchase, ideal for fastening steel profiles on steel substructures in construction and industrial applications.
