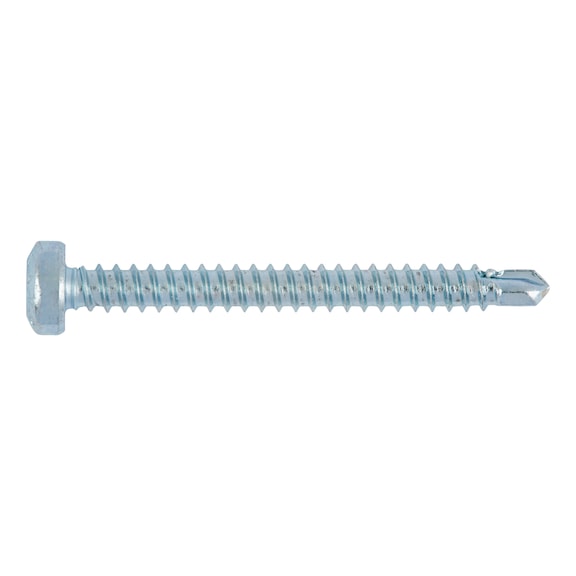

Self-Tapping Drill Screw | Zinc Plated Steel | AW10 Drive | Pan Head | by Wurth
The self-tapping drill screw is designed for fastening steel profiles on steel substructures, featuring a zinc plated surface for corrosion resistance and an AW10 internal drive for optimal torque transmission. Ideal for construction and industrial applications, this screw reduces assembly time by at least 50% with its drilling tip, ensuring efficient installation without the need for center-punching.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Self-Tapping Drill Screw | Zinc Plated Steel | AW10 Drive | Pan Head | by Wurth
Brand: Wurth
SKU: 2063513
Alternatively Known As: Self-tapping drill screw, Steel drill screw, Zinc plated tapping screw, AW drive screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: AW10 internal drive
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Suitable substrates: Steel, Aluminum
- Nominal diameter: 3.5 mm
- Length: 13 mm
- Head diameter: 6.9 mm
- Head height: 2.75 mm
- Drill tip length: 3.7 mm
- Screw-thread length with drill tip: 10.5 mm
- Minimum recommended substructure thickness: 1.5 mm
- Maximum material thickness to be drilled through (metal): 2.5 mm
- Minimum/maximum attachment thickness: 1.5-6.5 mm
- Recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 13mm x 13mm x 6.9mm
- Weight: 0.1 kg
Key Features
- Assembly time reduced by at least 50% using the drill tip for drilling without centre-punching, thread forming, and fastening
- Additional optimal torque transmission by the AW drive for steel/steel applications with diameters 4.2 mm, 4.8 mm, and 5.5 mm
- Steel case-hardened and galvanized blue passivated for corrosion resistance
- Pan head with AW10 internal drive
- Self-tapping screw thread with drilling tip
Professional Installation Requirements
- Installation by a qualified professional recommended to ensure correct torque and fastening performance.
Applications
- Fastening steel profiles on steel substructures up to 3 mm thickness
- Suitable for steel and aluminum substrates
- Component combinations tI/tII in accordance with approval ETA-10/0184
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Wurth standard product warranty against manufacturing defects.
Available Now
Available for immediate purchase, ideal for fastening steel profiles on steel substructures in construction and industrial applications.
