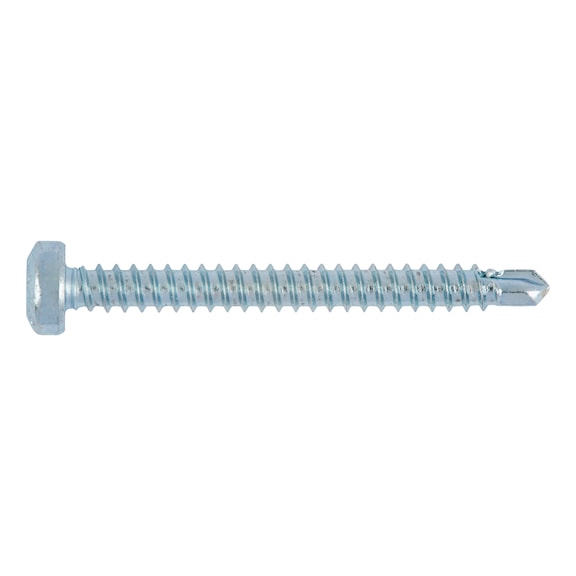

Self-Tapping Screw with Drill Tip | Zinc Plated Steel | AW Drive | 4.2mm Diameter | by Wurth
The self-tapping screw with drill tip is designed for efficient fastening of steel profiles on steel substructures up to 3 mm thick. Made from durable zinc-plated steel, it features an AW drive for optimal torque transmission and reduces assembly time by at least 50%. Ideal for professionals in construction and industrial applications, this screw ensures reliable performance and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Self-Tapping Screw with Drill Tip | Zinc Plated Steel | AW Drive | 4.2mm Diameter | by Wurth
Brand: Wurth
SKU: 2064216
Alternatively Known As: Self-tapping screw, Drill tip screw, Steel fastening screw, AW drive screw, Zinc plated tapping screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: AW20
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Underground: Steel, Aluminum
- Nominal diameter (d1): 4.2 mm
- Length (l1): 16 mm
- Head diameter (dk): 8.0 mm
- Head height (k1): 3.45 mm
- Drill tip length (lp): 5.2 mm
- Screw-thread length with drill tip: 13.5 mm
- Max. material thickness to be drilled through (metal): 3 mm
- For max. substructure thickness: 2 mm
- Min./max. attachment thickness: 1.5-8.0 mm
- Approval: ETA-10/0184
- Min./max. recommended installation speed (idling): 1200-1800 rpm
- Dimensions (H x L x W): 3.45mm x 16mm x 8mm
- Weight: 0.1 kg
Key Features
- Assembly time reduced by at least 50% using the drill tip for drilling without centre-punching, thread forming, and fastening
- Additional optimal torque transmission by the AW drive for steel/steel applications with diameters 4.2 mm, 4.8 mm, and 5.5 mm
- Suitable for component combinations tI/tII in accordance with approval ETA-10/0184
Professional Installation Requirements
- Installation should be performed by professionals familiar with fastening steel profiles and using appropriate power tools at recommended speeds.
Applications
- Fastening steel profiles on steel substructures up to 3 mm thickness
- Suitable for steel and aluminum underground materials
- Component combinations tI/tII in accordance with approval ETA-10/0184
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Steel Case-Hardened Self-Tapping Screw with Drill Tip 4.2x16mm is available now for immediate purchase. Ideal for fastening steel profiles on steel substructures in construction and industrial applications.
