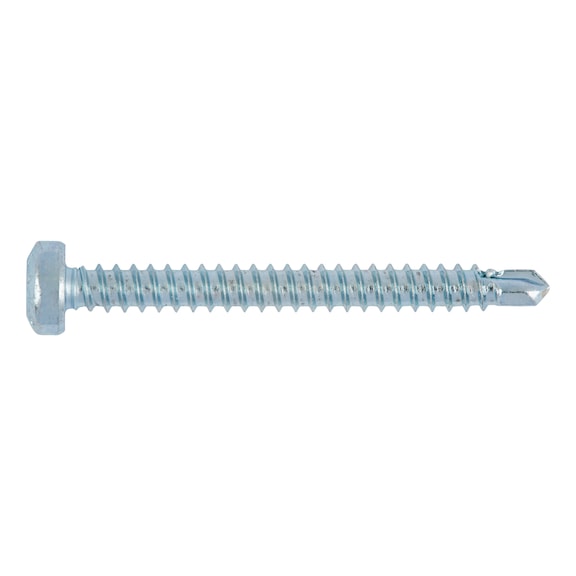

Self-Tapping Screw | Steel with Zinc Plating | AW Drive | Drill Tip | by Wurth
Self-tapping screw designed for fastening steel profiles on steel substructures, featuring a durable zinc plating and an AW drive for optimal torque transmission. Ideal for construction and industrial applications, this screw reduces assembly time by at least 50% and is RoHS-compliant, ensuring a safer environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Self-Tapping Screw | Steel with Zinc Plating | AW Drive | Drill Tip | by Wurth
Brand: Wurth
SKU: 2063516
Alternatively Known As: Self-tapping screw, Drill tip screw, Steel fastening screw, AW drive screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: AW
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Underground: Steel, Aluminum
- Nominal diameter (d1): 3.5 mm
- Length (l1): 16 mm
- Head diameter (dk): 6.9 mm
- Head height (k1): 2.75 mm
- Drill tip length (lp): 3.7 mm
- Screw-thread length with drill tip: 13.5 mm
- Internal drive: AW10
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 2.5 mm
- Min./max. attachment thickness: 1.5-9.5 mm
- Min./max. recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 2.75mm x 16mm x 6.9mm
- Weight: 0.1 kg
Key Features
- Assembly time reduced by at least 50% using the drill tip for drilling without centre-punching, thread forming, and fastening
- Additional optimal torque transmission by the AW drive for steel/steel applications with diameters 4.2 mm, 4.8 mm, and 5.5 mm
- Suitable for component combinations tI/tII in accordance with approval ETA-10/0184
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and compliance with structural requirements.
Applications
- Fastening steel profiles on steel substructures up to 3 mm thickness
- Suitable for steel and aluminum substrates
- Component combinations tI/tII in accordance with approval ETA-10/0184
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Available for immediate purchase, ideal for fastening steel profiles on steel substructures in construction and industrial applications.
