Senoa Accessibility Multi Dimmer Switch 3 Button 10A White Trader

BRAND: Trader
SKU: SNASMDS3
$420.10 List price: $560.20
+ −
30 Days Return Electricians Unlock Trade Access
Trader multi dimmer switch features glass front styling, 3 button control and 10A max 230V rating. Ideal for accessible lighting control in care settings.

Alternatively Known As: Accessibility Multi Dimmer Switch, 3‑Button Dimmer Switch, Senoa SNASMDS3

Technical Specifications
  • Supply Voltage: 230 V~ 50 Hz
  • Maximum Total Load: 10 A
  • Dimmer Rated Load: up to 250 W (LED), 100 W (incandescent)

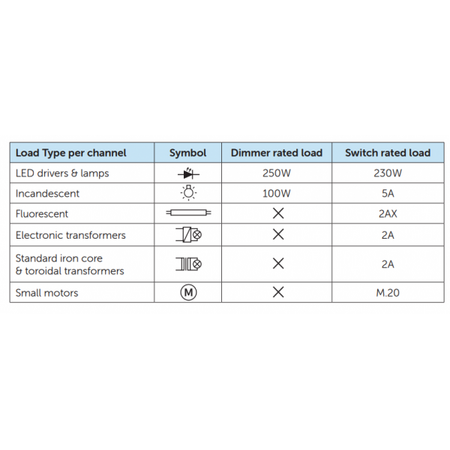

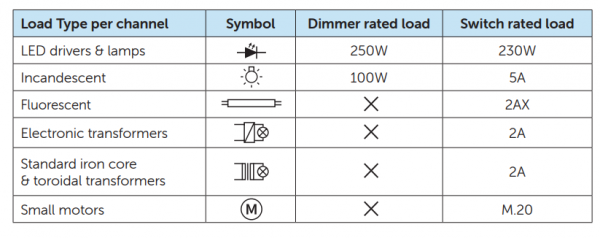

  • Switch Rated Load per Channel: 230 W (LED), 5 A (incandescent), 2 AX (fluorescent), 2 A (electronic/iron‑core transformer), M.20 (small motors)
  • Mounting Centres: 84 mm
  • Trailing‑edge ‘Ripple Smooth™’ dimming technology

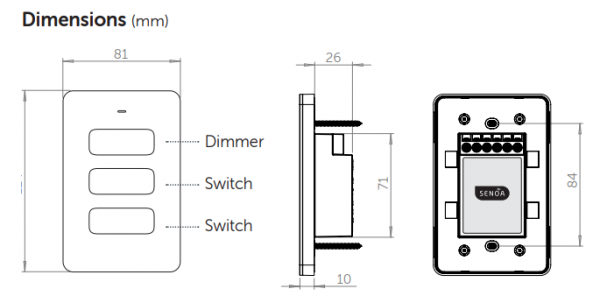

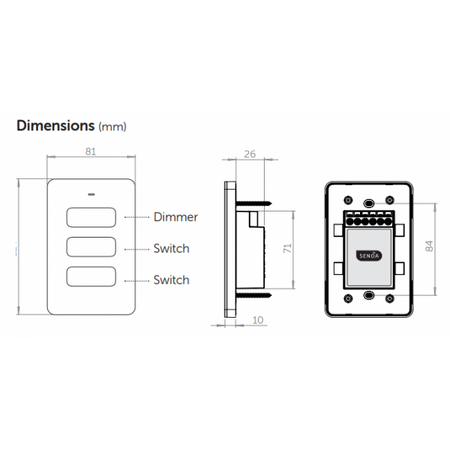

  • Dimensions (H x L x W): 124mm x 81mm x 81mm
  • Weight: 0.3 kg
Key Features
  • Touch‑glass interface with NDIS‑compliant large touch pads (>35 mm)
  • Slim magnetic glass fascia with proximity‑sensing illumination
  • Advanced control: press for on/off, hold to dim, double press full brightness, triple press fade‑to‑off
  • Smart functions: schedules, auto‑off timers, night‑light control, energy usage monitoring (watts & dollars), power outage recovery
  • Bluetooth mesh connectivity with Behavior Link and voice control via Zimi App
Professional Installation Requirements
  • Installation must be performed by a licensed electrician in accordance with local wiring regulations.
Applications
  • Accessible lighting control in healthcare and aged‑care facilities
  • Residential accessible switch installations for ease of use
  • Commercial environments where multi‑load control and accessibility are required
Standards & Compliance
  • Complies with AS/NZS 60669.2.1 (switches and control‑gear)
  • Meets AS/NZS CISPR 15 (radio‑frequency interference)
Environmental Benefits
  • Smarter energy management via schedules and real‑time usage monitoring reduces wasted energy
  • Trailing‑edge dimming improves compatibility with modern LEDs, reducing flicker and extending lamp life
Warranty Information

2‑year manufacturer’s warranty from date of purchase.

Available Now

Available via authorised trade channels in Australia; contact SCHNAP or Trader for current availability.
