Sensor Actuator Cable DOL-1204G10MC75KM0 | M12 4-Pin Connector | IP65/IP67/IP68 Rated | by SICK

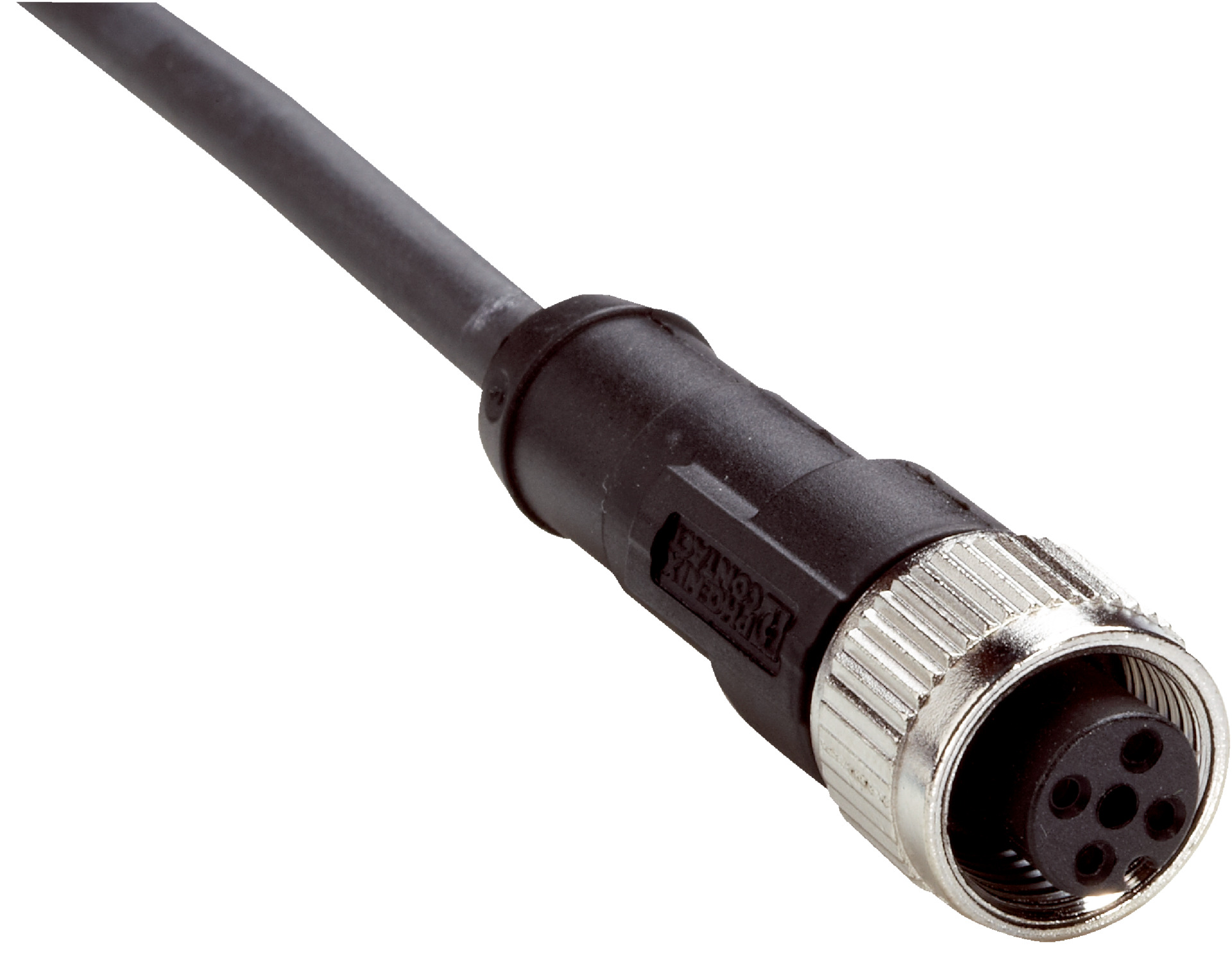

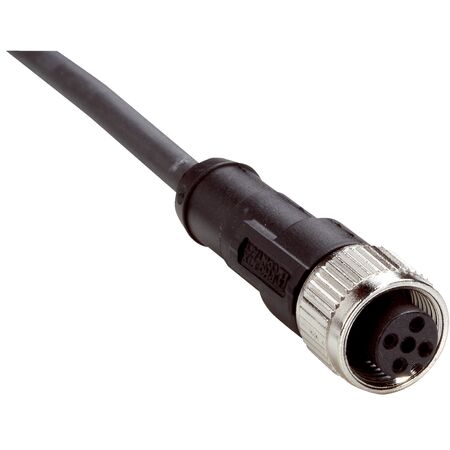

The DOL-1204G10MC75KM0 sensor actuator cable features a robust M12 4-pin female connector and flying leads, designed for reliable connections in industrial automation. With a 10 m PUR halogen-free cable, it withstands harsh environments and offers an impressive IP65/IP67/IP68 rating, making it ideal for applications involving oils and lubricants. Perfect for drag chain operations, this cable ensures durability and longevity with over 2,000,000 bending cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 10 m, 4-wire, PUR, halogen-free
- Cable diameter: 5.9 mm
- Conductor cross section: 0.75 mm²
- Shielding: Unshielded
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65/IP67/IP68
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –25 °C to +80 °C, Head –25 °C to +90 °C
- Bending cycles: ≥ 2,000,000
- Tightening torque: 0.4 Nm
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.3 kg
Key Features
- Female connector, M12, 4-pin, straight on head A
- Flying leads on head B
- Cable length: 10 m, 4-wire, PUR, halogen-free
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Bending radius for flexible use > 10 x cable diameter
- Bending radius for stationary position > 5 x cable diameter
- High bending cycles ≥ 2,000,000
- Enclosure rating IP65/IP67/IP68 for robust protection
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –25 °C to +80 °C, Head –25 °C to +90 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Suitable for zones with oils and lubricants
- Ideal for drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DOL-1204G10MC75KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
