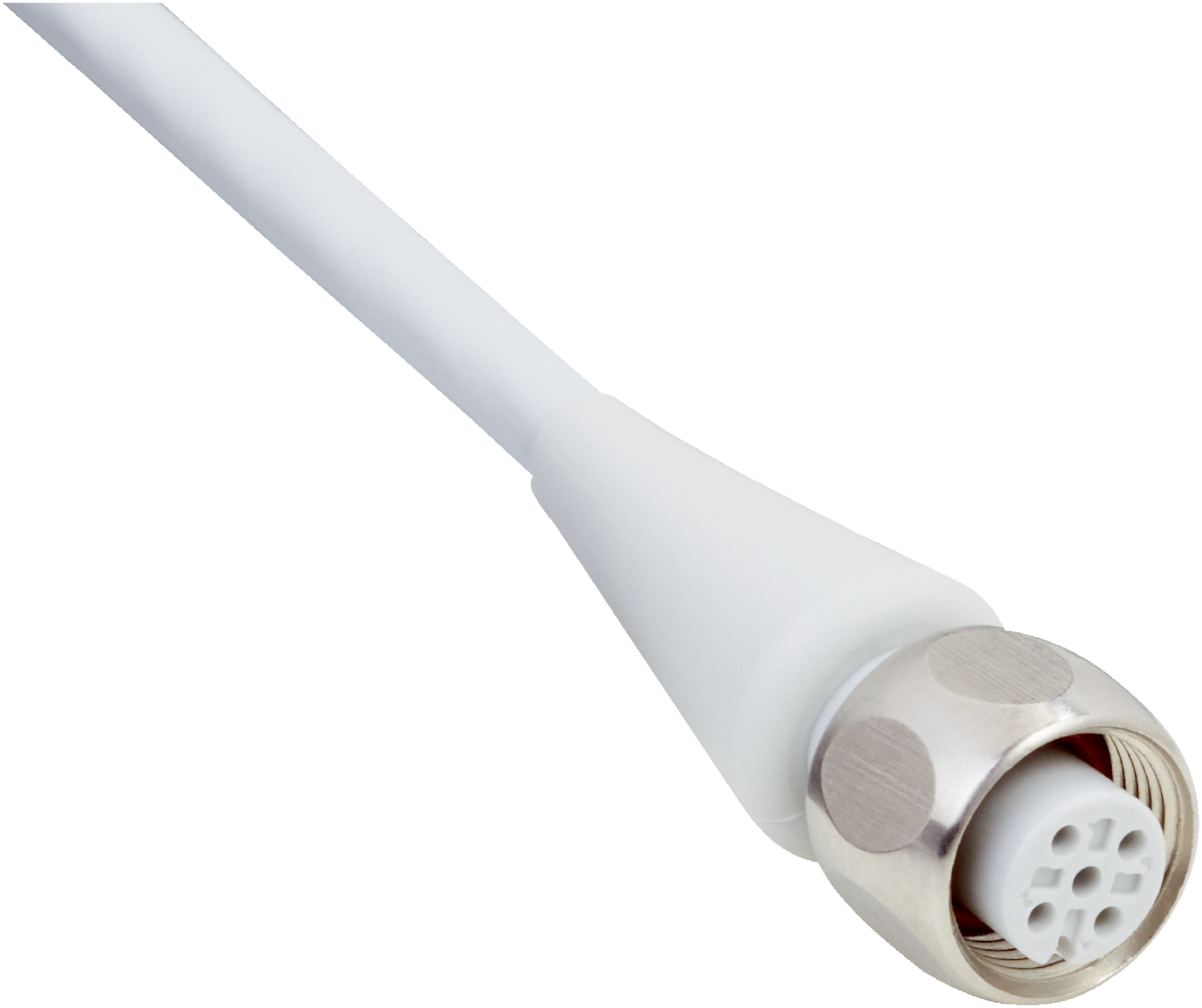

Sensor Actuator Cable M12 4-Pin | 15m Length | IP67/IP69K Rated | Chemical Resistant | by SICK
The Sensor Actuator Cable M12 4-Pin is designed for reliable connections in industrial automation and robotics. With a robust 15m length, IP67/IP69K rating, and chemical resistance, it’s perfect for hygienic and washdown zones. Built for flexibility and durability, this cable ensures long service life and compliance with safety standards, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M12 4-pin, actuator cable 15m, industrial sensor cable, hygienic sensor cable, IP69K sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: Polypropylene (PP)
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 1 Nm
- Cable length: 15 m, 4-wire, PP jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: Flexible use -25 °C to +105 °C, Stationary position -40 °C to +105 °C
- Bending cycles: ≥ 4,000,000
- Reference voltage: ≤ 250 V
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Enclosure rating: IP67 / IP69K
- Chemical resistance: Resistant to lactic acid, hydrogen peroxide, and ECOLAB certified cleaning agents
- Dimensions (H x L x W): 15mm x 15000mm x 15mm
- Weight: 0.5 kg
Key Features
- Female connector, M12, 4-pin, straight on head A
- Flying leads on head B
- Connector material: Polypropylene (PP)
- Locking nut made of stainless steel (V4A/1.4404)
- Cable length: 15 m, 4-wire, PP jacket
- Cable diameter: 4.6 mm
- Conductor cross section: 0.34 mm²
- Unshielded cable
- High bending radius for flexible use and stationary position
- Operating temperature range: -25 °C to +105 °C (flexible use), -40 °C to +105 °C (stationary)
- Rated impulse voltage: 2.5 kV
- Current loading: 4 A
- Torsion force: 180° per meter
- IP67 / IP69K enclosure rating for protection against dust and high-pressure water jets
- Chemical resistant to cleaning agents including lactic acid and hydrogen peroxide
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Drag chain operation
- Robotics
- Cold bending resistant applications
- Seawater resistant environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces need for frequent replacements, minimizing waste
- Durable design supports long service life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now

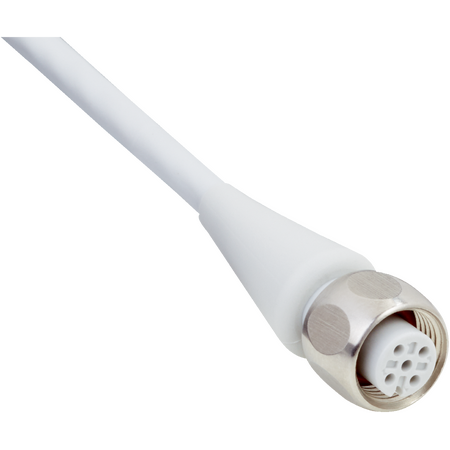

The SICK DOL-1204-G15MRN sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and hygienic applications.
