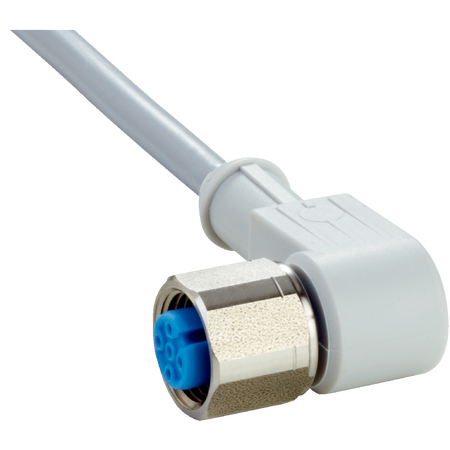

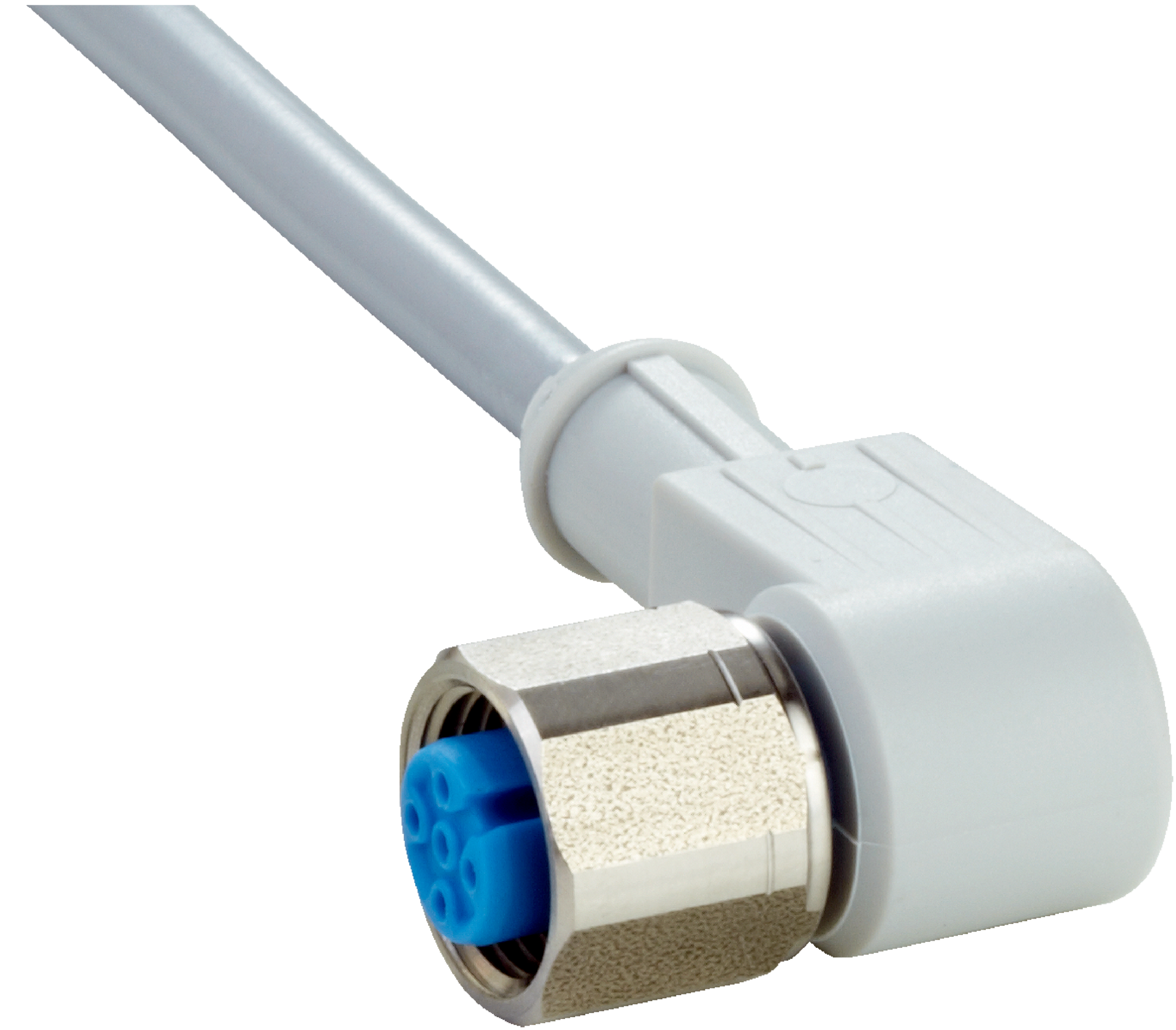

Sensor Actuator Cable M12 4-Pin Angled 5m Length LED Indicator SICK
The Sensor Actuator Cable M12 4-Pin Angled is designed for reliable connections in industrial automation, featuring a 5m length and an LED function indicator.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M12 4-pin angled, Actuator cable with LED indicator, PUR connector cable 5m
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, angled
- Connection type head B: Flying leads
- Connector material: PUR
- Locking nut material: Stainless steel (V4A/1.4404)
- Cable: 5 m, 4-wire, PVC
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Display LED: Yes
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP69K
- Tightening torque: 0.6 Nm
- Dimensions (H x L x W): 14mm x 5000mm x 14mm
- Weight: 0.1 kg
Key Features
- Female connector, M12, 4-pin, angled on head A
- Flying leads on head B
- Connector material: PUR with gray color
- Locking nut made of stainless steel (V4A/1.4404)
- Cable length: 5 m, 4-wire, PVC jacket in gray
- Cable diameter: 5 mm with 0.34 mm² conductor cross section
- Unshielded cable
- LED function indicator
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating: IP65 / IP67 / IP69K
- Current loading: 4 A
- Rated impulse voltage: 0.8 kV
- Tightening torque: 0.6 Nm
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Hygienic and washdown zones
- Zones with chemicals
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Resistant to chemical cleaning agents reducing environmental contamination risks
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DOL-1204-L05MNI sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
