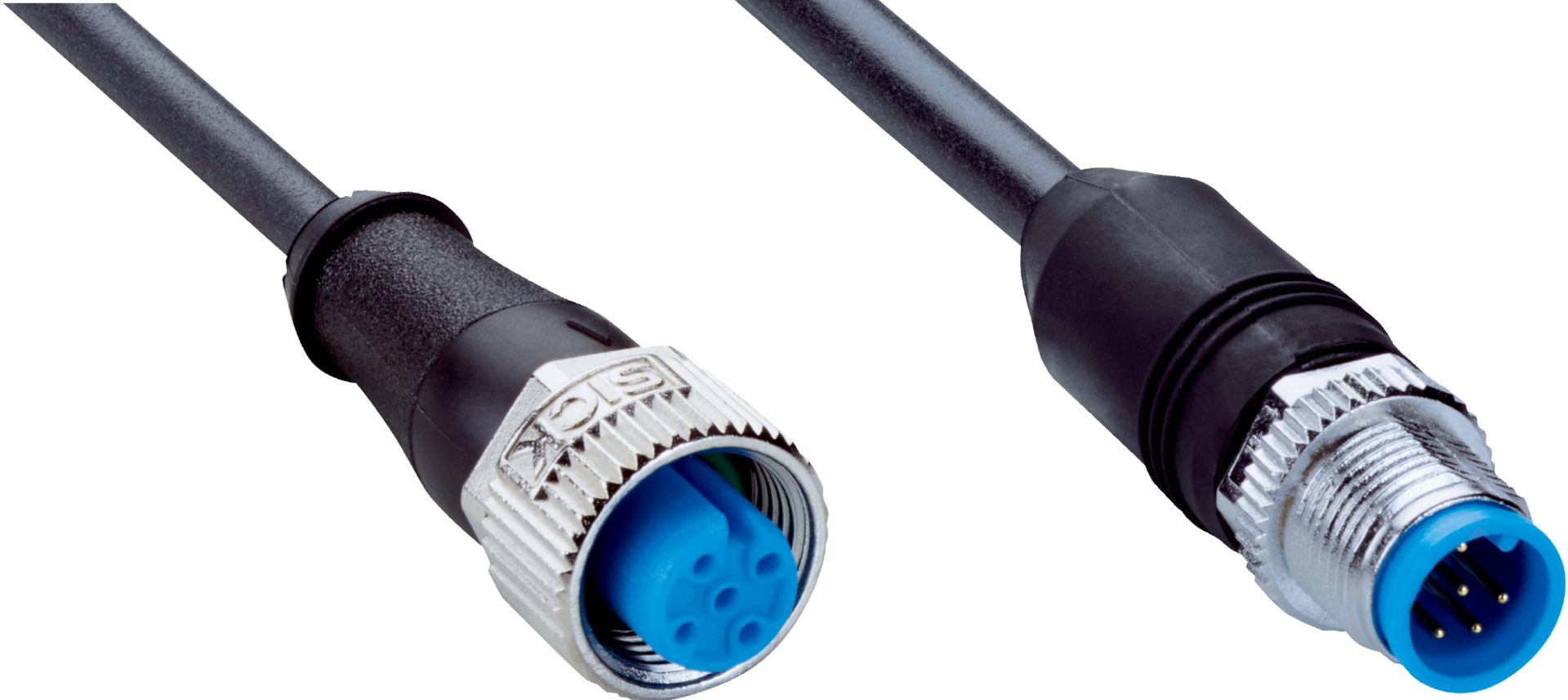

Sensor/Actuator Cable M12 | 5-Pin Female & Male Connectors | IP65/IP66K/IP67 Rated | by SICK
The Sensor/Actuator Cable M12 is designed for robust industrial automation, featuring 5-pin female and male connectors with screw locking for secure connections. This halogen-free PUR cable is perfect for flexible sensor/actuator applications, ensuring high torsion resistance and compliance with safety standards. Ideal for robot drag chain operations, it offers IP65/IP66K/IP67 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Robot sensor cable, actuator cable M12, drag chain cable, flexible sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight, A-coded
- Connection type head B: Male connector, M12, 5-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.6 Nm
- Cable length: 0.3 m
- Cable type: 5-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +55 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Reference voltage: 30 V DC
- Current loading: 2 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, horizontal flame test/CSA FT2 / IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 10mm x 300mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 5-pin, straight, A-coded
- Male connector M12, 5-pin, straight, A-coded
- Screw connection locking plug
- Cable is halogen-free PUR with 5 wires
- High bending radius suitable for flexible use and drag chain operation
- IP65 / IP66K / IP67 enclosure rating for robust protection
- Flame retardant cable material compliant with UL 1581 and IEC standards
- High torsion resistance with 2,000,000 torsion cycles
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Robot drag chain operation
- Industrial automation requiring flexible sensor/actuator cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

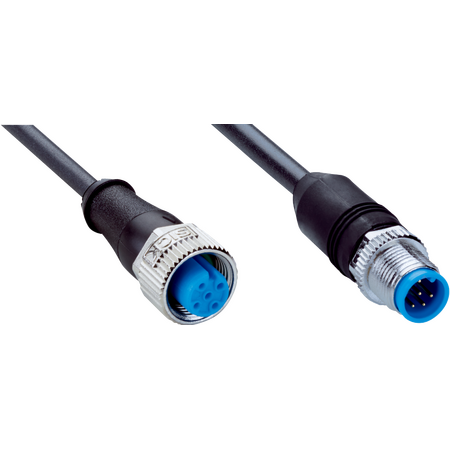

The SICK YF2A15-C30S01M2A15 sensor/actuator cable is available for immediate purchase, ideal for industrial robot drag chain applications.
