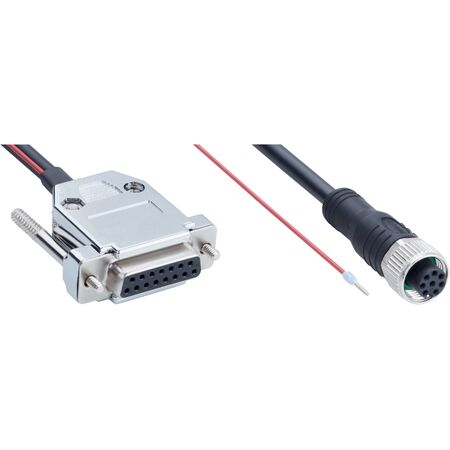

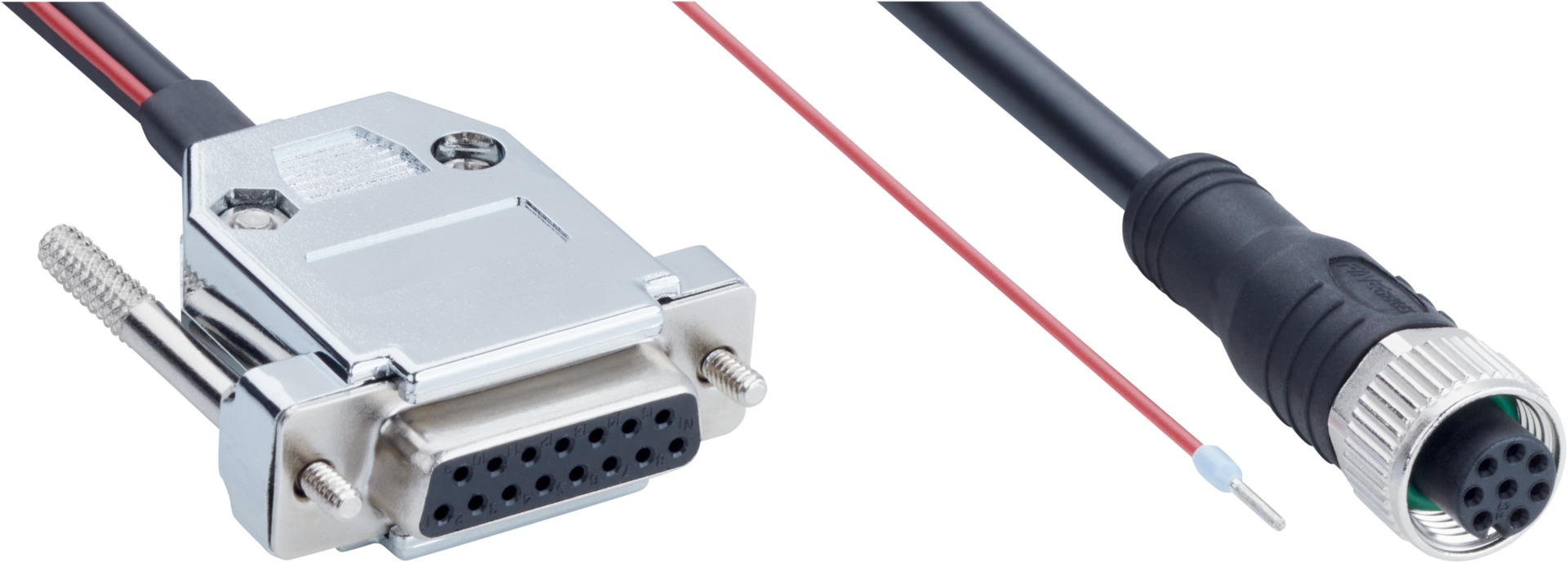

Sensor/Actuator Cable M12 to D-Sub | IP67 Rated | 0.46m Length | Shielded for Reliable Transmission | by SICK
The Sensor/Actuator Cable M12 to D-Sub is designed for industrial automation, featuring a robust IP67 rated enclosure for dust and water resistance. With a 0.46m length and shielded construction, it ensures reliable signal transmission in demanding environments. Ideal for robotics and machine control systems, this cable is built to withstand temperatures from -25°C to +80°C, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M12, 8-pin
- Connection type head B: Female connector, D-Sub, 15-pin
- Connector color: Black
- Tightening torque: 0.4 Nm
- Cable length: 0.46 m
- Cable wires: 6-wire, PVC
- Jacket material: PVC
- Jacket color: Black
- Cable diameter: 5.3 mm
- Conductor cross section: 0.2 mm²
- Shielding: Shielded
- Rated impulse voltage: 0.8 kV
- Current loading: 2 A
- Signal type: Sensor/actuator cable
- Enclosure rating (M12): IP67
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -25 °C to +80 °C
- Insulation resistance: ≥ 10 MΩ
- Dimensions (H x L x W): 10mm x 460mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 8-pin on head A
- Female connector D-Sub, 15-pin on head B
- Shielded sensor/actuator cable for reliable signal transmission
- PVC jacket and cable for durability
- IP67 rated enclosure on M12 connector for dust and water resistance
- Operating temperature range from -25°C to +80°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor connections
- Actuator signal transmission in manufacturing
- Robotics and machine control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC jacket reduces need for frequent replacements, minimizing waste
- Shielding reduces electromagnetic interference, improving energy efficiency of connected devices
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF2A26-C50S01FDSB6 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and control system applications.
