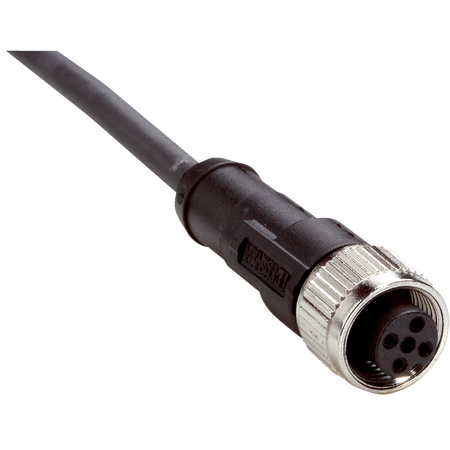

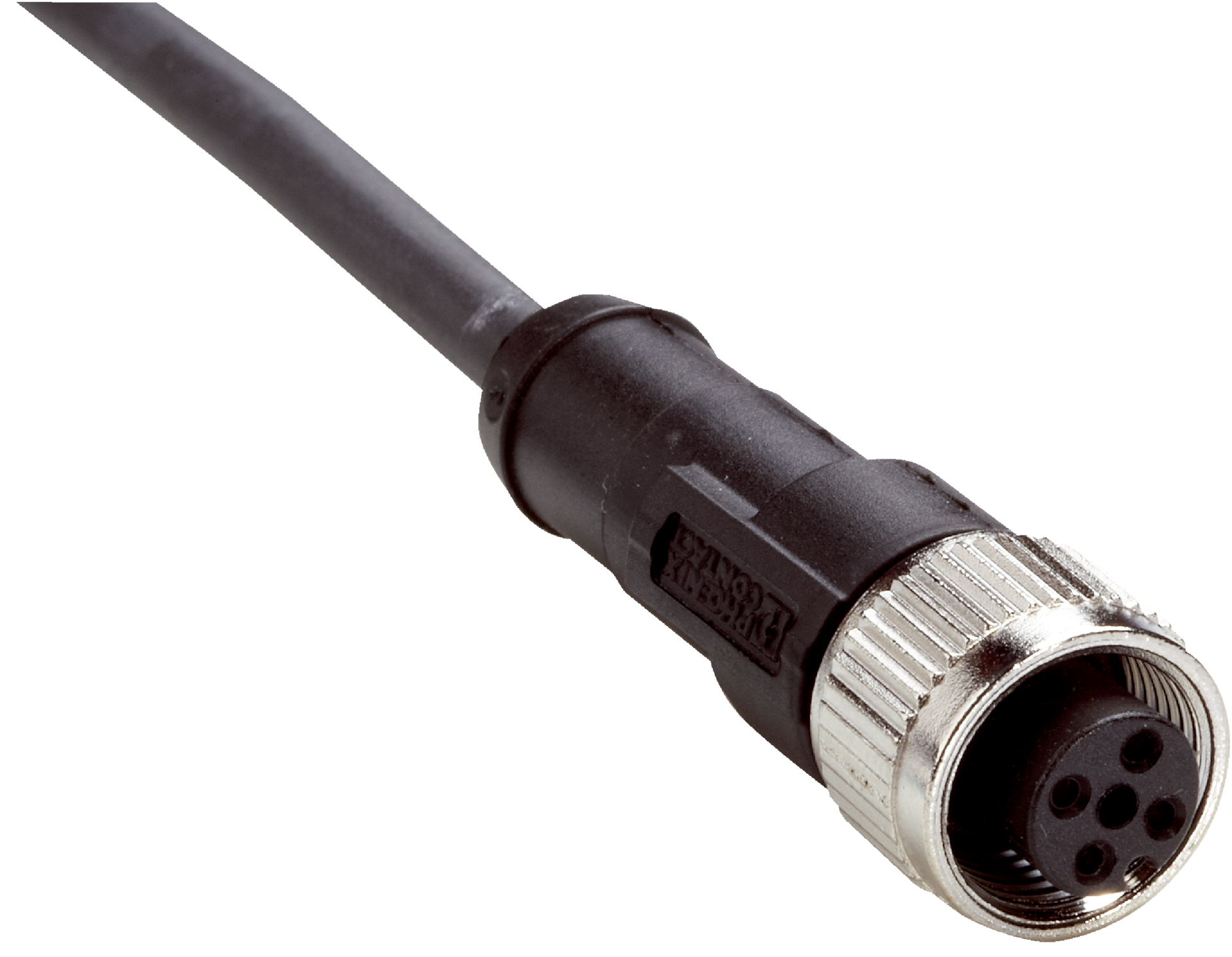

Sensor Actuator Cable M12 Female to Flying Leads | 10m Length | IP65/IP67/IP68 Rated | by SICK
The Sensor Actuator Cable M12 Female to Flying Leads is a robust 10m PUR halogen-free cable designed for industrial automation applications. With an IP65/IP67/IP68 rating, it ensures reliable performance in harsh environments, making it ideal for sensor and actuator connections. Built for durability, this cable supports current loading up to 4 A and operates effectively in temperatures ranging from -25 °C to +90 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M12 female to flying leads, actuator cable PUR 10m, industrial sensor cable
Technical Specifications
- Connection type head A: Female connector, M12, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable: 10 m, 4-wire, PUR, halogen-free
- Jacket color: Black
- Cable diameter: 5.9 mm
- Conductor cross section: 0.75 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: ≥ 2,000,000
- Reference voltage: ≤ 250 V
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP68
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –25 °C to +80 °C
- Operating temperature head: –25 °C to +90 °C
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.2 kg
Key Features
- 10 m length, 4-wire PUR halogen-free cable
- Female M12 4-pin straight connector on head A
- Flying leads on head B
- Cable diameter 5.9 mm with 0.75 mm² conductor cross section
- Unshielded sensor/actuator cable
- High bending radius suitable for flexible use and stationary positions
- Operating temperature range: -25 °C to +90 °C (head), -25 °C to +80 °C (stationary), -5 °C to +80 °C (flexible)
- IP65/IP67/IP68 rated for robust environmental protection
- Zinc die-cast nickel-plated locking nut for durability
- Supports current loading up to 4 A
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact and improves safety in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK DOL-1204G10MC75KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
