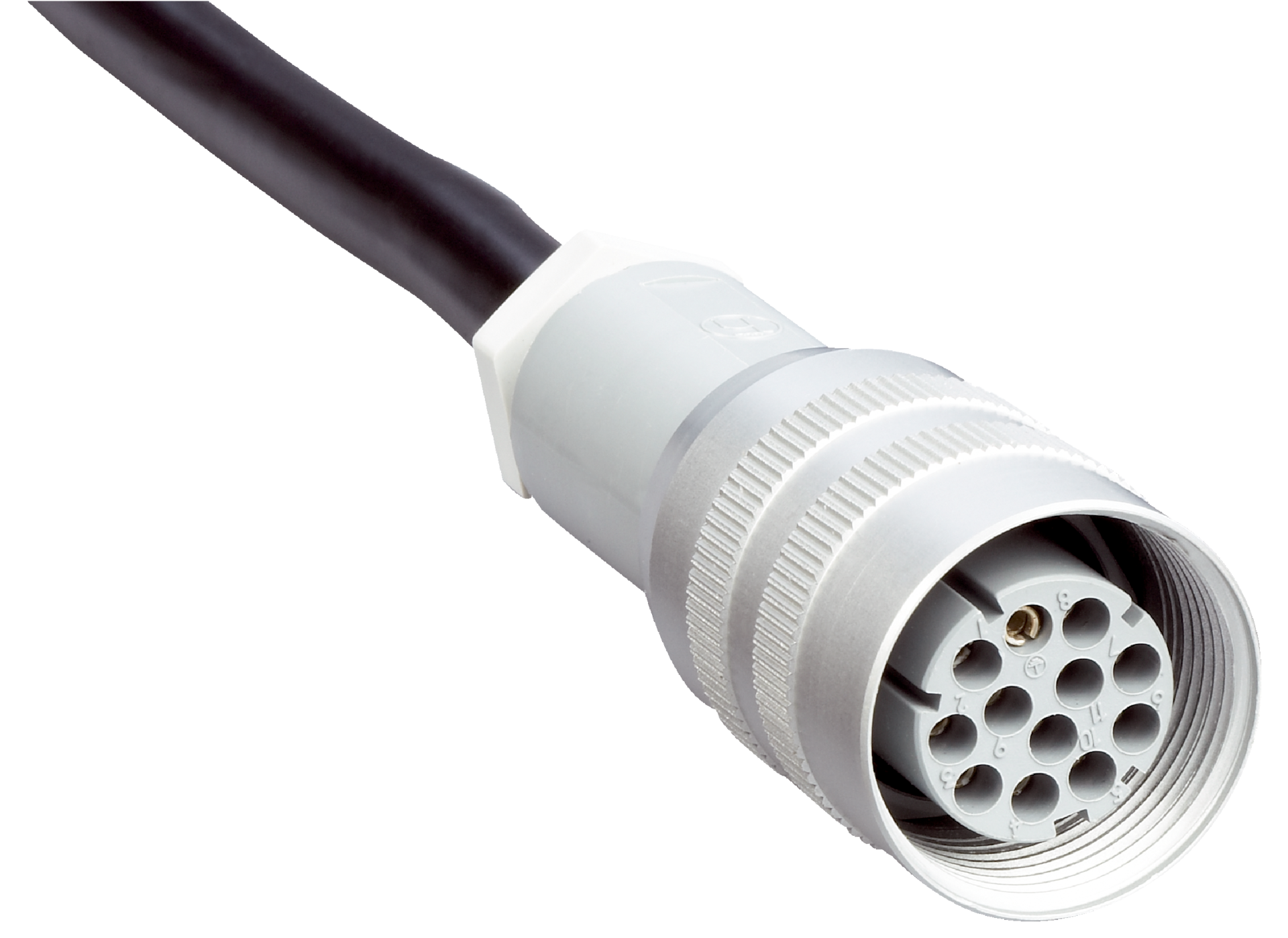

Sensor Actuator Cable M26 12-Pin | 10m Length | IP65 Rated | by SICK
The Sensor Actuator Cable M26 12-Pin is designed for reliable industrial automation, featuring a 10m length and a robust 12-wire PVC construction. With an IP65 rating for dust and water protection, this cable is perfect for actuator wiring in uncontaminated and chemical zones, ensuring optimal performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M26 12-pin, Actuator cable 10m, Industrial sensor connector cable
Technical Specifications
- Connection type head A: Female connector, M26, 12-pin, straight
- Connection type head B: Flying leads
- Cable length: 10 m
- Cable wires: 12-wire PVC
- Cable diameter: 10 mm
- Conductor cross section: 0.75 mm²
- Shielding: Unshielded
- Current loading: 5 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 (EN 60529)
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -40 °C to +90 °C
- Connector material: PET
- Connector color: Gray, silver
- Jacket material: PVC
- Jacket color: Black
- Reference voltage: ≤ 60 V AC/DC
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.3 kg
Key Features
- Female connector M26, 12-pin, straight
- 10 m length, 12-wire PVC cable
- Unshielded cable with 0.75 mm² conductor cross section
- IP65 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +90 °C depending on use
- Connector made of PET material with gray and silver color
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician experienced with industrial sensor cabling to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor connections
- Actuator wiring in uncontaminated and chemical zones
- Machine and factory automation requiring robust cable connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC jacket and PET connector materials ensure long service life reducing waste
- RoHS compliant, minimizing hazardous substances in manufacturing
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

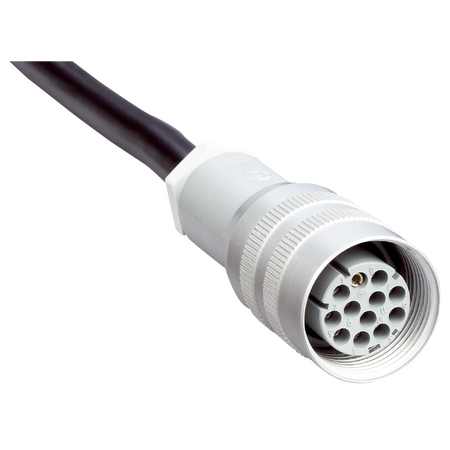

The SICK DOL-0612G10M075KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
