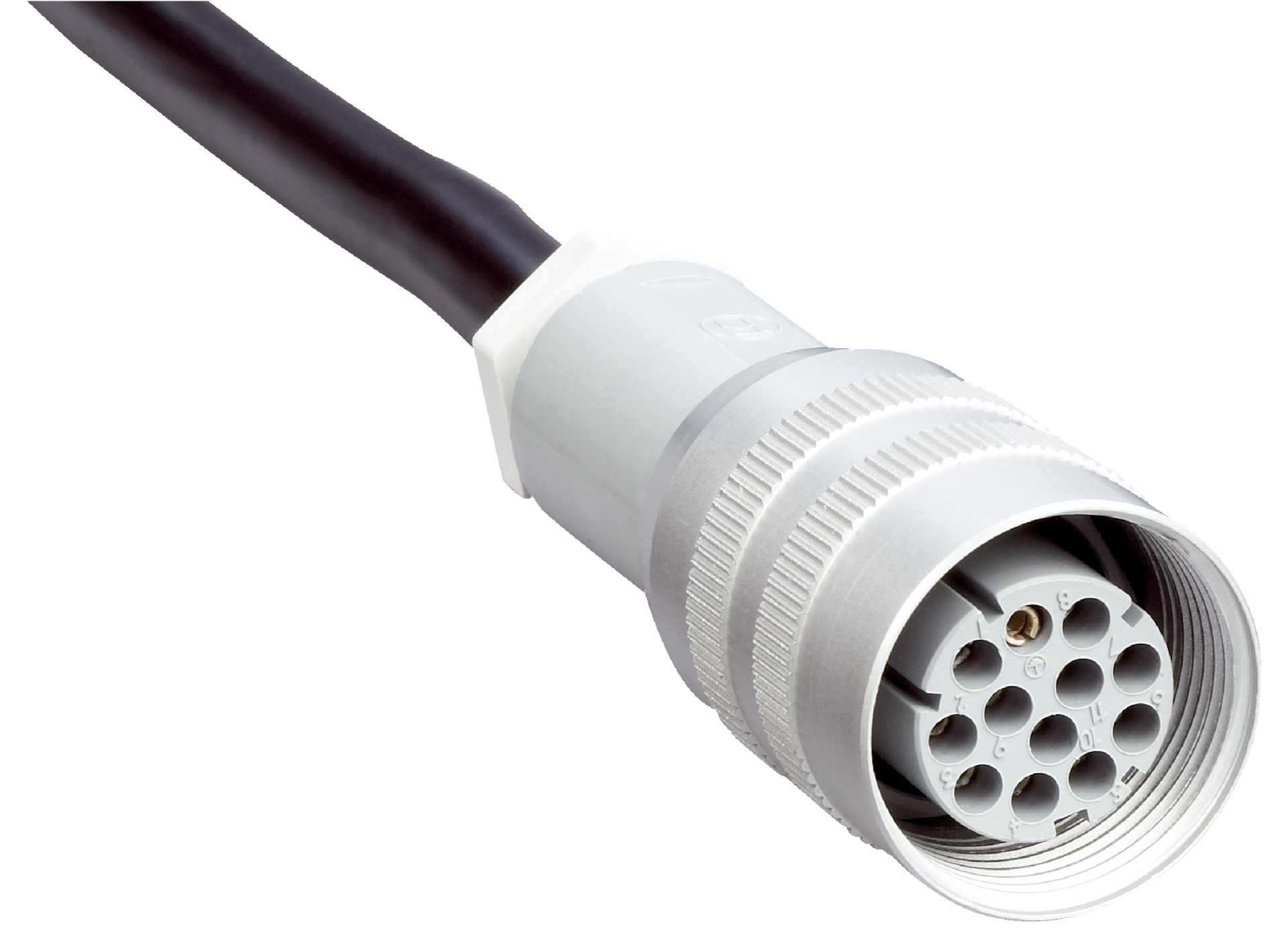

Sensor Actuator Cable M26 12-Pin | 30m Length | IP65 Rated | by SICK
The Sensor Actuator Cable M26 12-Pin is designed for reliable industrial automation connections, featuring a 30m length and a durable PVC jacket. With an IP65 rating, it provides excellent protection against dust and water, making it ideal for factory automation systems and harsh environments. This cable supports a current loading of 5A and operates effectively in a wide temperature range, ensuring long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M26, 12-pin, straight
- Connection type head B: Flying leads
- Connector material: PET
- Connector color: Gray, silver
- Cable length: 30 m
- Cable wires: 12-wire
- Cable jacket material: PVC
- Cable jacket color: Black
- Cable diameter: 10 mm
- Conductor cross section: 0.75 mm²
- Shielding: Unshielded
- Reference voltage: ≤ 60 V AC/DC
- Current loading: 5 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 (EN 60529)
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –40 °C to +90 °C
- Dimensions (H x L x W): 50mm x 30000mm x 100mm
- Weight: 0.5 kg
Key Features
- Female connector, M26, 12-pin, straight
- 30 m length, 12-wire PVC cable
- PVC jacket in black with 10 mm diameter
- Unshielded cable with 0.75 mm² conductor cross section
- IP65 rated enclosure for dust and water protection
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –40 °C to +90 °C
- Current loading capacity of 5 A
- Connector material made of PET in gray and silver colors
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor and actuator connections
- Factory automation systems requiring reliable cable connections
- Environments needing IP65 rated sensor cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable PVC jacket reduces need for frequent replacements, minimizing waste
- IP65 rating ensures long service life in harsh environments, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

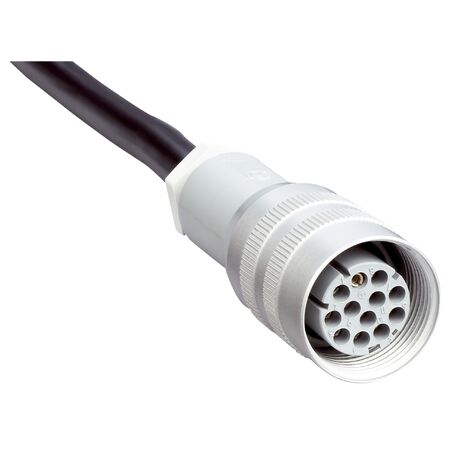

The SICK DOL-0612G30M075KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
