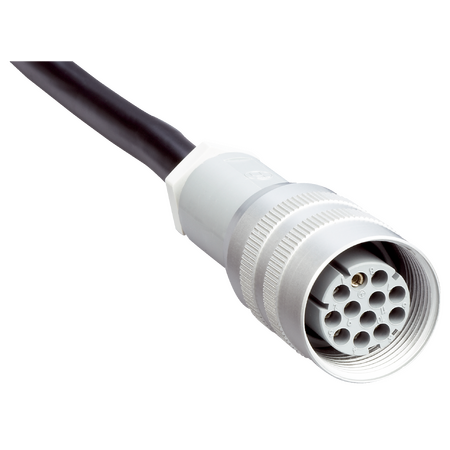

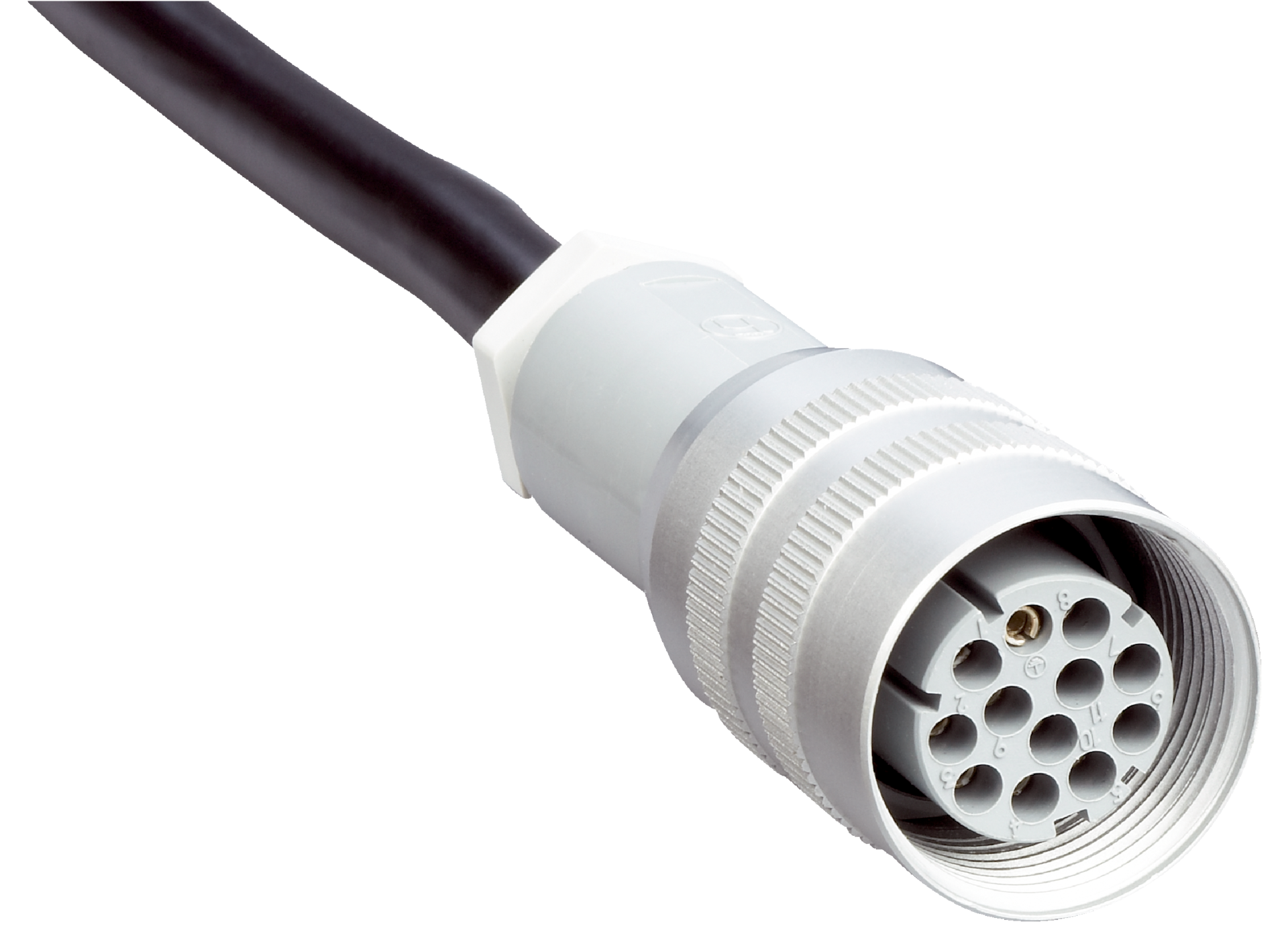

Sensor/Actuator Cable M26 12-Pin | 5m Length | IP65 Rated | PVC Jacket | by SICK

BRAND: SICK
SKU: 2022545
$345.10 List price: $433.80
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
The Sensor/Actuator Cable M26 12-Pin is designed for reliable connections in industrial applications, featuring a 5m length and an IP65 rating for protection against dust and water jets. Ideal for use in uncontaminated and chemical zones, this durable cable ensures optimal performance with a 0.75 mm² conductor cross section and flexible operating temperature range from -5 °C to +80 °C.

Alternatively Known As: Sensor cable M26 12-pin, Actuator cable 5m, SICK sensor connector cable, Industrial sensor cable

Technical Specifications
  • Connection type head A: Female connector, M26, 12-pin, straight
  • Connection type head B: Flying leads
  • Cable length: 5 m
  • Cable type: 12-wire PVC
  • Jacket material: PVC
  • Cable diameter: 10 mm
  • Conductor cross section: 0.75 mm²
  • Shielding: Unshielded
  • Current loading: 5 A
  • Signal type: Sensor/actuator cable
  • Enclosure rating: IP65 (EN 60529)
  • Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –40 °C to +90 °C
  • Dimensions (H x L x W): 10mm x 5000mm x 26mm
  • Weight: 0.2 kg
Key Features
  • Female connector, M26, 12-pin, straight
  • 5 m length, 12-wire PVC cable
  • PVC jacket in black color
  • Unshielded cable with 0.75 mm² conductor cross section
  • IP65 rated enclosure for protection against dust and water jets
  • Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –40 °C to +90 °C
  • Current loading capacity of 5 A
  • Connector material made of PET with gray and silver color
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Use in uncontaminated zones
  • Suitable for zones with chemicals
  • Sensor and actuator cable applications
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Durable PVC jacket and PET connector material ensure long service life reducing waste
  • RoHS compliant, minimizing hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK DOL-0612G05M075KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial sensor and actuator applications in uncontaminated and chemical zones.
